HELiOS Options: Input

HELiOS Options > Input

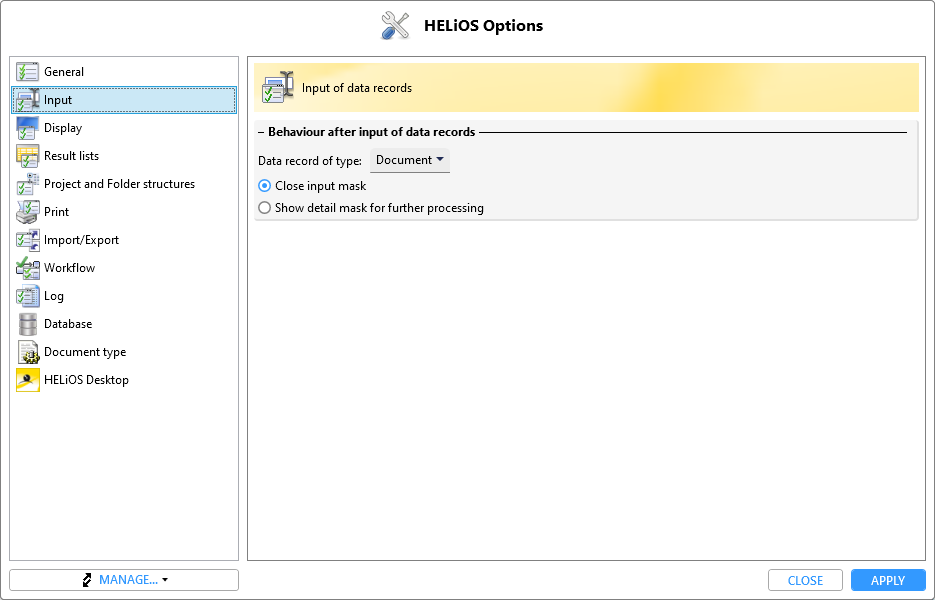

The Input tab of the HELiOS Options window enables you to specify, in the Behaviour after input of data records area, the procedure of the program after creation of a Document or a Project.

In the Data record of the type selection field you choose whether the settings for a

• Document
• Folder
• Article
• Pipe class
• Project
• User-specific type

should be specified.

Select one of the following options for the selected object:

• Close input mask: The input mask will be closed after creation of a document.
• Show detail mask for further processing: Closes the input mask and opens the detail window, enabling you to modify the graphic. This option is has been preset for all modules.
• Click OK to save the settings.
