HELiOS Options: Project and Folder Structures

HELiOS Options > Project and Folder Structures

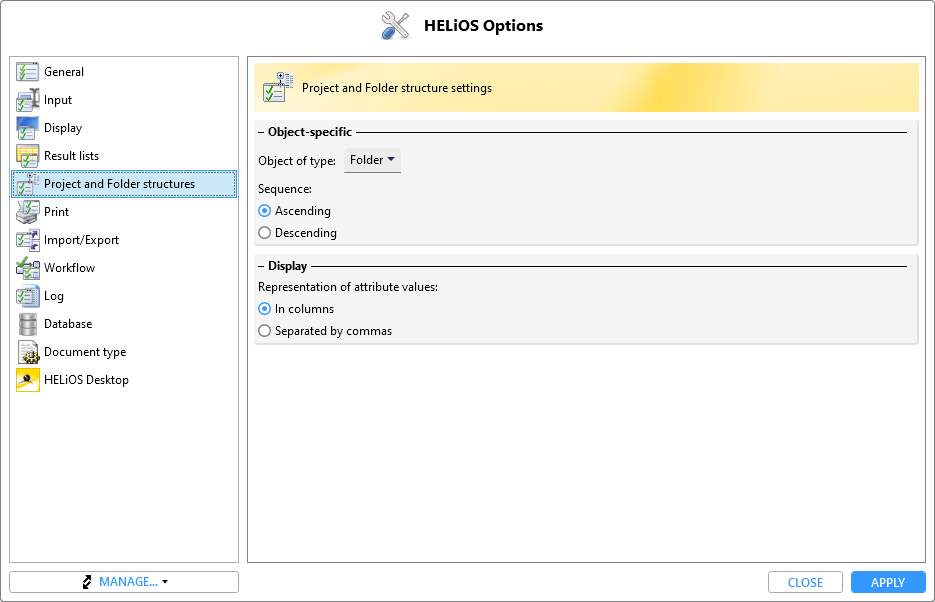

Use the Project and Folder structures tab of the HELiOS Options dialogue window to configure the representation of Project and Folder tree structures (e.g. in the Explorers or in the Structure tabs of the detail masks.

The tab consists of the following two areas:

Object-specific

In this area you can select whether the settings are to be applied to the object type: Folder or Project.

Beneath Sequence you can specify whether the tree structure items are to be displayed in Ascending or Descending alphabetic order.



Display

In this area you can specify for the Folder or Project whether the Representation of attribute values should be In columns (more modern type of representation allowing the adjustment of column sizes by dragging) or Separated by commas (older type of representation with a static width).

A restart of HELiOS, or a logging out and in again of the user will be required for the changes to take effect.
