Develop and Export Sheets

Sheet Metal > Sheet development > Export > > Develop and export sheets

This function exports the development of Steel Engineering plates. in the process, one temporarily generated development will be output for the export. You can choose between various sheet development parameters. The orientation will only be unambiguous if it has been previously determined with the Processing direction function.

You can choose between the following formats:

DXF/DWG,
XML for CADMAN-B (from Version 7.5) by LVD and
GEO for (ToPs GEO).
STEP

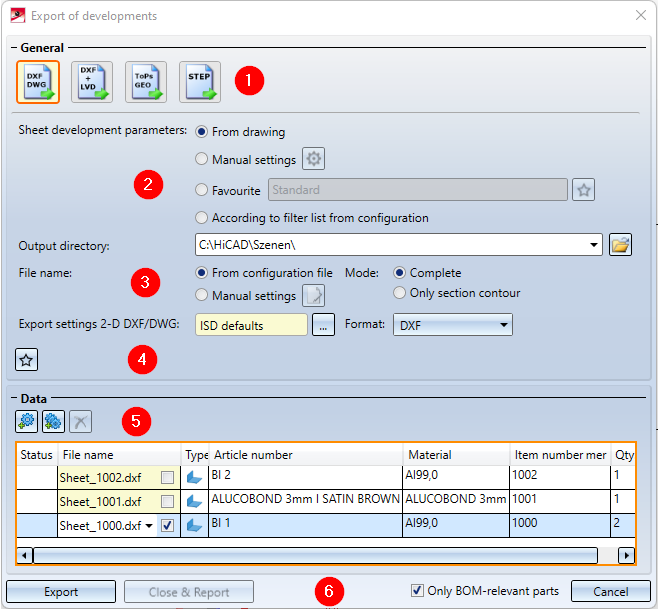

1. Output file

2. Sheet development parameters

3. General parameters

4. Parameters for STEP and ToPS GEO

5. Data

6. Apply/discard value inputs

Output file

In this area you choose the file format for the export.

	If you click on this icon, you choose the export of a development as DXF or DWG file (AutoCAD). In the DXF settings you can choose between DXF and DWG. You can either export a complete development or a section contour.
	If you click on this icon, you can export the sheet developments from HiCAD as XML file for CADMAN-B (from Version 7.5 onwards) by LVD. Also, an additional DXF file will be created. A prerequisite for the output of LVD data is the assigning of bending tools to the bend zone with the Bend zone tooling function.
	The ToPs GEO icon allows a direct export of the development from HiCAD to the GEO file format. The GEO data can be directly loaded into the individual modules (Laser etc.) of the ToPs family.
	The STEP format allows a standardized data exchange between two different CAD systems. STEP is primarily used for transferring the geometry data of solid models. In this way, time-consuming manual rework of transferred data can be avoided.

Sheet development parameters

For the selection of the sheet development parameters the following options are available:

From drawing	Use this option to load the parameters of the default settings for the drawing. The default setting for new drawings can be specified at Sheet Metal > Sheet development > Default setting.
Manual settings	Clicking the icon opens the Sheet development parameters dialogue window.
Favourite	The Favourites saved for the development parameters, e.g. LVD, Bytronic or COBUS are offered for selection here.
According to filter list from configuration	Use this option to load the assignment of the development favourites to the part filters (Sheet Metal or Steel Engineering plates) from the Configuration Editor (at Sheet Metal > Sheet development > Filter-Development parameter assignment. Part filters are filters that have been predefined by the ISD and also the manual filters for part search that have been stored as Favourites.

Please note:

The development parameters are only applied to Sheet Metal parts. Steel Engineering plates are exported with the unchanged edge colours in such a way that only machining contours extending over the entire plate thickness are output (through holes, the through hole of a countersunk bore, etc.).

General parameters

Output directory	Here you enter the directory for the export files. Click on the folder icon to choose an existing folder on your computer or to create a new one.
File name	Clicking on the icon while the Manual settings are active opens the Annotation Editor. Here you can configure the file name, e.g. by applying the part attributes of the Sheet Metal part from which the development has been derived. The annotation settings can also be saved as Favourites. The file format is *.FTD. In the HiCAD SYS directory you will find the pre-configured file SheetToDXF.FTD. You load the file by activating the option From configuration file.
Mode	Here you specify whether only the section contours or the complete developments are to be exported.
DXF settings	For the DXF/DWG export you can determine via the settings, e.g.: the assignment of the HiCAD elements to specific layers, the assignment of the HiCAD line types to the DXF line types, the correspondence between the symbols in HiCAD and the blocks in AUTOCAD, and the setting determining whether a complete DXF file including the HEADER section, TABLES section etc. is to be transferred, or only an ENTITIES section. You can load the ISD defaults with this icon , customise them with the Edit settings function and then save them as Favourites under a new name. Click here for more information.
Format	If you have chosen DXF/DWG as output file, you can specify the file extension here.
Favourites	The settings of the dialogue window can be saved as Favourites and reused at any time. To do this, click on the symbol at the bottom left of the dialogue window. More on favourites management can be found in the Manage Favourites topic of the HiCAD Basics Help. Please note: For the Drawing Management module you can preset the Favourites you defined here for the DXF export of external production drawings; namely, in the Configuration Editor at PDM > Drawing Management > External production drawings > DXF export Favourite.

Parameters

STEP

If you choose the STEP format instead, you have the following options:

Transfer layers	The layer on which the edge is located (e.g. bend lines on Layer 2) will be transferred during export.
Transfer colours	The colour will be transferred during export. If you have deactivated this option, you cannot use the Export fits information via surface colour option (see below).
Export fits information via surface colour	By activating or deactivating this checkbox you can determine whether fits information are to be exported by means of a surface colour. For this to happen, the Transfer colours checkbox (see above) needs to be deactivated. The diameter of the corresponding bore will then be highlighted in a different colour in the imported STEP part. In the SYS directory of your HiCAD installation you find the configuration file FITINFO_COLOR.DAT, in which it is determined which RGB value are to be assigned to which fits information.
Export free points	By activating or deactivating this checkbox you can determine whether the exporting of free points in the model drawing should be allowed or suppressed (if they could cause problems in other places).
Export free edges	By activating or deactivating this checkbox you can determine whether the export of free edges in the model drawing should be allowed or suppressed (if they could cause problems in other places).
Thread body	Choose As separate parts or United with parent part if you want thread bodies to be exported as individual parts or united with their superordinate part, respectively, in the model drawing. Choose Do not transfer if you do not want the thread bodies to be exported.

ToPS GEO

When outputting ToPsGEO data, the assignment from the file CAMIntHICAD_GEO.ini will be evaluated. By activating the Export forming edges option, you determine whether moulding tools and cross-breaks are to be taken into account during export.

Data

	Use this icon to select the sheets for export in the drawing.
	This icon shows all sheets contained in the drawing in the export list.
	Use this icon to delete selected sheets from the export list.
	If the part attributes set in the Editor cannot be applied to the sheets, you have the option to enter your own file name. To do this, activate the checkbox and enter the file name.
Only BOM-relevant parts	If you have activated this checkbox, only developments the sheets of which consider the BOM-relevance among the part attributes will appear in the export list.

The handling of item numbers can be determined in the Configuration Editor at Sheet Metal > Sheet development > Combine item number-wise. If you activate the checkbox here, the development of the sheets with identical item number will only be exported once. The quantity will remain unchanged.

Apply/discard value inputs

Export

When you click on the Export button, temporary developments will be generated and output of all sheets in the export list, according to the specified parameters. The status icon will indicate problems that may occur. The files will then be located in the specified directory.

Close & Report

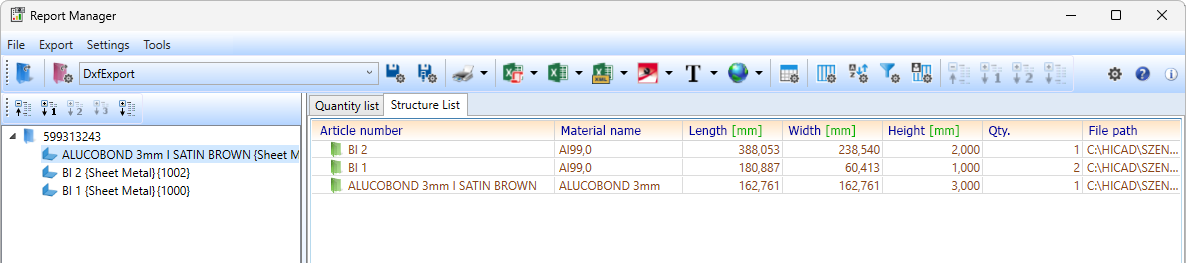

The Close & Report button activates the Report Manager and creates a BOM. If you did not itemize the Sheet Metal part in HiCAD, quantities will be set on 0 here.

All attributes will be transferred to the Report Manager (as with drawing creation) and, additionally, the file name and the file path of the export. You can configure a RM SETTINGS with the Report Manager, determining which data are to be written. You can output these data in a CSV file.

Click this button to end the function.

Please note:

If a countersunk bore is located at the edge of the sheet and HiCAD generates the development, it will always choose the smaller radius for the development. For chamfers the longer side will be selected.
In the SheettoDXF.ftd file you can find the default setting for the composition of the file name.
The DXF export also considers glass panes. If there are multi-layered glass panes, the individual glass layers will be exported. For annotation purposes and file name composition the attributes of the total glass pane can be used. In this context, please observe the information given in the Attributes of superordinate parts paragraph of the Attributes in annotation tags topic.
