Example 1 - Step 4: Create / Edit Parts (ManBIM)

Now create the example drawing. Activate the Steel Engineering tab of the Ribbon.

You create the drawing as follows:

1. Insert three IPE beams with the Insert new standard beam function (New > Insert new standard beam).

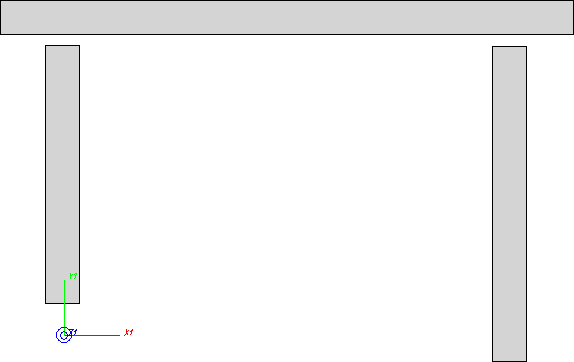

Model, top view

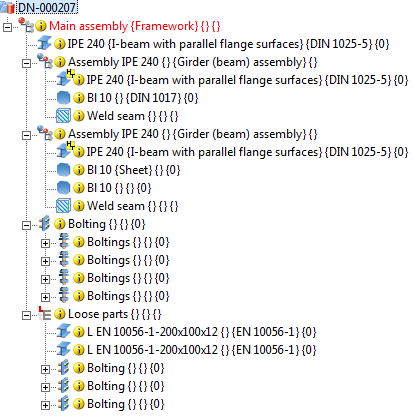

Model in the ICN

2. Select the connection Beam to web, with 2 plates and stiffener (1211), and connect the left beam and the upper beam.
3. Select the girder connection Angle connection, one-sided (1305), and connect the right beam and the upper beam.

Model, axonometric view

Model in the ICN
