Update Point Cloud References

Point Cloud > Tools > Update

This function allows point cloud references to be updated, for example to replace point clouds imported into a model drawing with other point clouds or to change the path where the point cloud was stored.

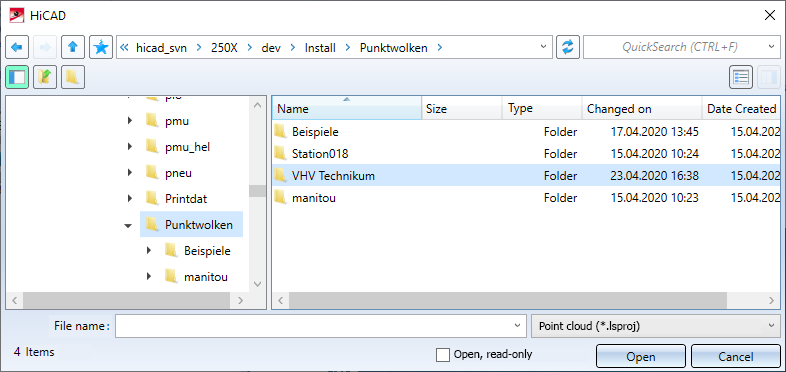

Select the new point cloud or point cloud path in the dialogue window and click Open.

The point cloud will be replaced or the point cloud reference will be updated.



Please note:

• The function can also be accessed via the context menu for point clouds.
• If you want to select a completely different point cloud (i.e. not the same point cloud, in a different location), you should first delete the clipping box(es). Otherwise the point cloud will not be visible. Of course, the clipping boxes can also be deleted afterwards.
