Welded Beams and Profiles

Steel Engineering > New > Beam > Welded beams/profiles >

The Welded beams/profiles menu contains insertion options for the following parts:

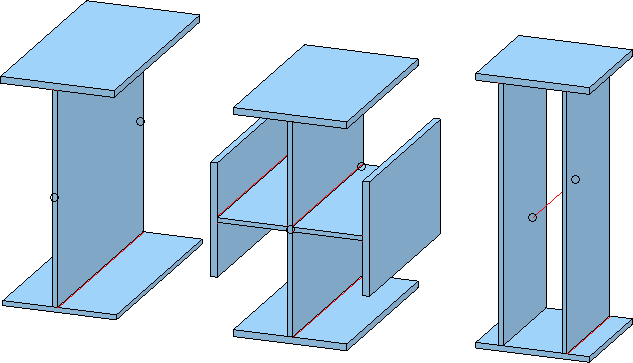

	Welded I-beam
	Welded box profile
	Welded cross profile





The configuration takes place via Design Variants. The beams and profiles are inserted in the same way as "normal" standard beams and profiles.

Please note that not all Steel Engineering-relevant processing functions can be applied to welded beams and profiles!
