Catalogue Editor - What's New?
Service Pack 2 2023 (V 2802)

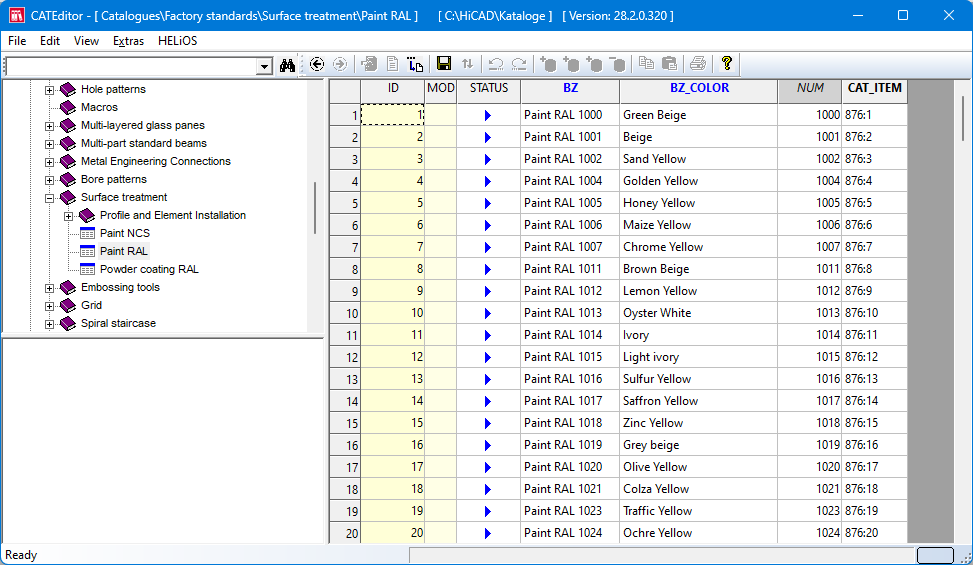

Paint/Powder coating RAL
The table Paint RAL has been extended by an additional column BZ_COLOR which contains the name of the respective RAL colour.
The same applies to the new table Powder coating RAL. Both tables can be found in the catalogue Factory standards > Surface treatment.

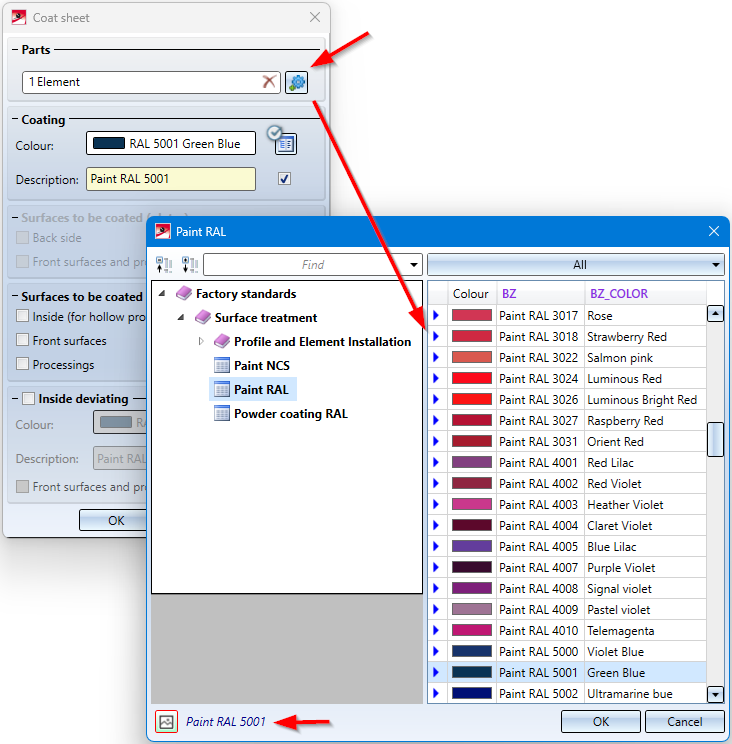

The additional column simplifies the colour selection in the catalogue for the function Coating. A preview of the colour and the colour name is now displayed next to the colour name during the colour selection in the catalogue. The number of the RAL colour is displayed in the lower left corner of the dialogue window.
FLUTZ profiles
The catalogue Factory standards > Factory beams > FLUTZ profiles has been expanded by round pipes. The corresponding table is HR-QR.
New columns for table Grid (DIN 24537)
The table Grid (DIN 24537) at Semi-finished products > Gratings has been expanded by the following columns:
- S Bearing bar diameter,
- AXB Mesh pitch and
- R Slip resistance.
Service Pack 1 2023 (V 2801)
Fastenal - Thread cutting screws
The catalogue Factory standards > User-defined fasteners > User-defined bolts+screws > Fastenal > Self-drilling screws has been extended.
The following tables are new:
- Hex-Unslotted Hex Washer Head *
- Philips Drive Pan Head *
- Philips Drive Flat Head
* The tables replace the previous tables of the same name. The new tables have been created in the unit inch.

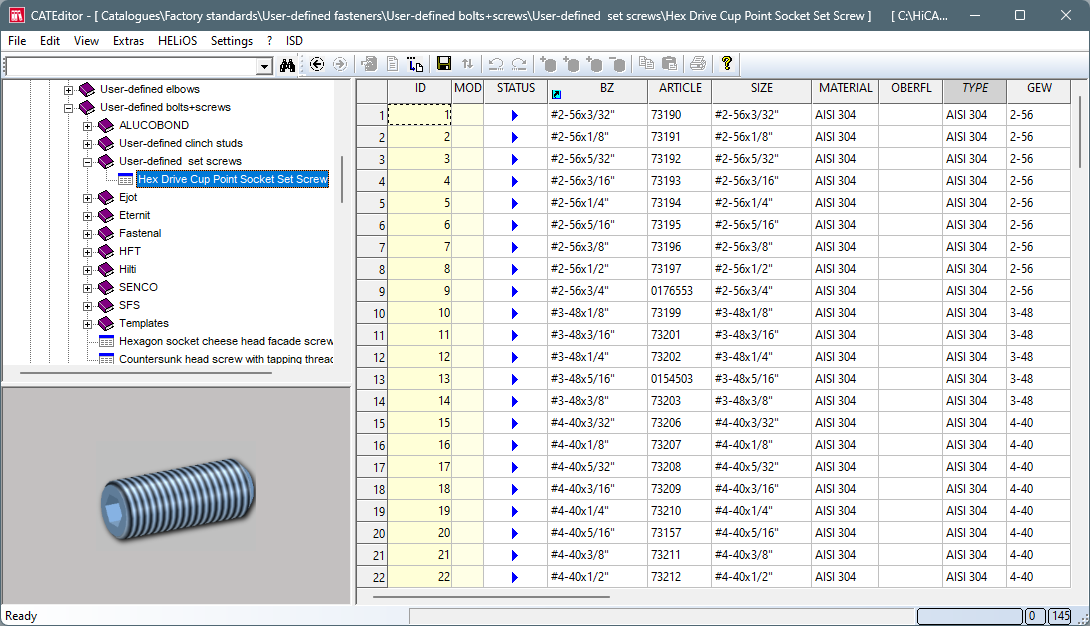

Hexagon socket set screws with cup point
The catalogue Factory standards now contains new set screws according to US standard. You can find the hexagon socket set screws and cup point at Factory standards > User-defined fasteners > User-defined bolts + screws > User-defined set screws >Hex Drive Cup Point Socket Set Screw.

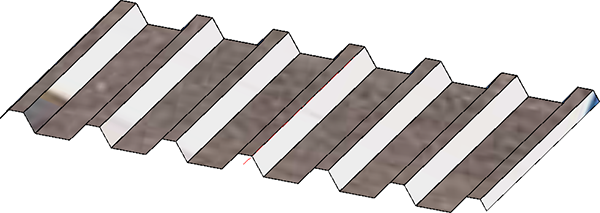

ATAS Belvedere profiles
At Factory standards > Series > Roof Wall Facade > Room-closing profiles > ATAS, Belvedere profiles are also available in the Exposed Fastener catalogue as of HiCAD 2023 SP1.
- Belvedere 6" Short Rib
- Belvedere 7.2" Rib
- Belvedere PenumWall
- Grand C
- Grand V
- Span Wall
Updated SAB profiles
The sandwich panels of SAB have been adapted to the changes of the profile manufacturer. This means that in the catalogue Factory standards > Series > Roof Wall Facade > Room-closing profiles > SAB, SAB's sandwich panels have been updated, new profiles have been added and old ones have been marked as deleted. This affects the following tables:
- Sandwichpanels, roof\SAB D,
- Sandwichpanels, wall\SAB W and
- Sandwichpanels, wall\SAB WB.

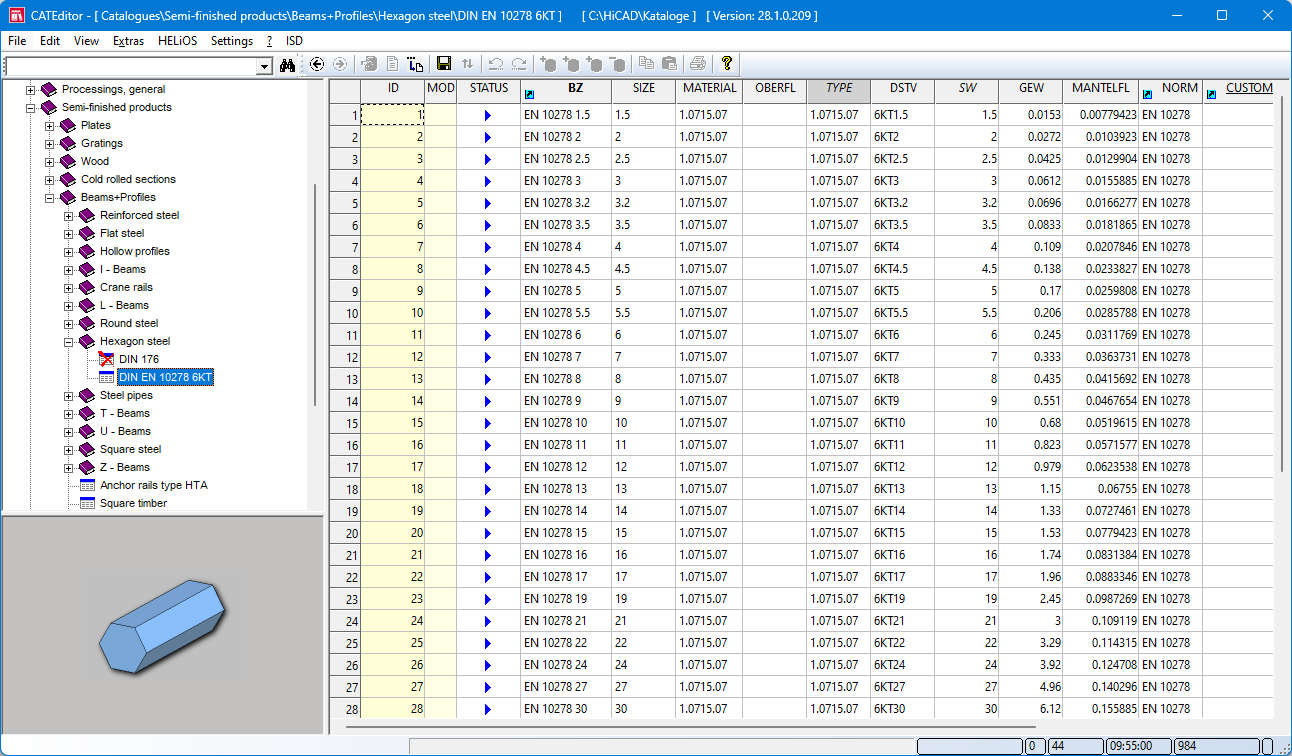

Hexagon steel DIN EN 10278
In the catalogue Semi-finished products > Beams+Profiles > Hexagon steel the table DIN 176 (standard obsolete) has been replaced by the table DIN EN 10278 6KT.
Major Release 2023 (V 2800)
Units and Unit categories
The Catalogue Editor now supports Unit categories (e.g. Length, Surface area, Volume, Weight) and Units (e.g. mm, m , in, ft, kg) as Column properties.
In the future, the units are to be set in all ISD catalogues so that when they are installed in HiCAD, it is evident in which unit the standard parts are available in the catalogue. In many catalogues, e.g. in the new US standard parts, this has already been implemented, in the other tables this will be done with the coming Service Packs.
You can also use this option in your own tables. To do this, right-click on the column header and assign the unit category and unit to the column.
New shear connector cartridges
The following, new Hilti objects have been added to the catalogue Purchased/Factory standard parts > Shear connector cartridges:
- HIT-HY 10 Plus at Mortar > Hilti,
- HIT-HY 200 at Mortar > Hilti and
- HIT-SC 16x85 at Sieve sleeve > Hilti.
Other US Fasteners
EJOT Bolt anchors
In the Factory standards > User-defined fasteners > User-defined anchors catalogue, four new tables with bolt anchors are available under EJOT:
- BA-E PLUS
- BA-E_PLUS HCR
- BA-F PLUS
- BA-V PLUS
Washers
In the catalogue Factory standards > User-defined fasteners > User-defined washers > Fastenal two new tables are available:
- Flat Washers > General Purpose Flat Washers and
- Lock Washers > Split Lock Washers.
Bolts+Screws
In the catalogue Factory standards > User-defined fasteners > User-defined bolts+screws > Fastenal new tables for bolts and screws are available:
|
Catalogue |
Table |
|
Bolts |
|
|
Lag Screws |
|
|
Sheet Metal Screws |
|
|
Machine Screws |
|
|
Thread Cutting Screws |
|
* replaces the previous table
Processings
The following tables have been added to the catalogue Processings, general > Processing:
|
Catalogue |
Table |
|
Bores |
|
|
Countersinks |
|
Hexagon head screws
In the catalogue Factory standards > User-defined fasteners > User-defined nuts > Fastenal three new tables are available:
- Hex Nuts
- Hex Jam Nuts
- Machine Screw Hex Nuts
Rivets
In the Factory standards > User-defined fasteners > User-defined rivets > Fastenal catalogue, the previous Rivet Dome Head table has been replaced. The previous table has been marked as deleted.
The same applies to the table Rivet Dome in the catalogue Factory standards > User-defined processings > User-defined bores for rivets.
Groove form for easy fiX milling cutter
In the Factory standards > Composite panels, groove form catalogue, the Standard groove form table has been expanded to include a groove form for easy fiX milling cutter 135°, 3mm. This table is used, among other things, for attaching and folding flanges with milling edge zones.
US Materials
The following US materials have been added to the Materials catalogue.
|
Non-ferrous metals > Aluminium alloys |
Steel > Structural steels |
Fine steel > Fine steel alloys |
|---|---|---|
|
|
|
Sheet Metal parts according to US standard
New in the catalogue Factory standards > Sheets is the table ISD US sheet. The table contains sheet metal parts of different thicknesses (in inches) according to US standard.

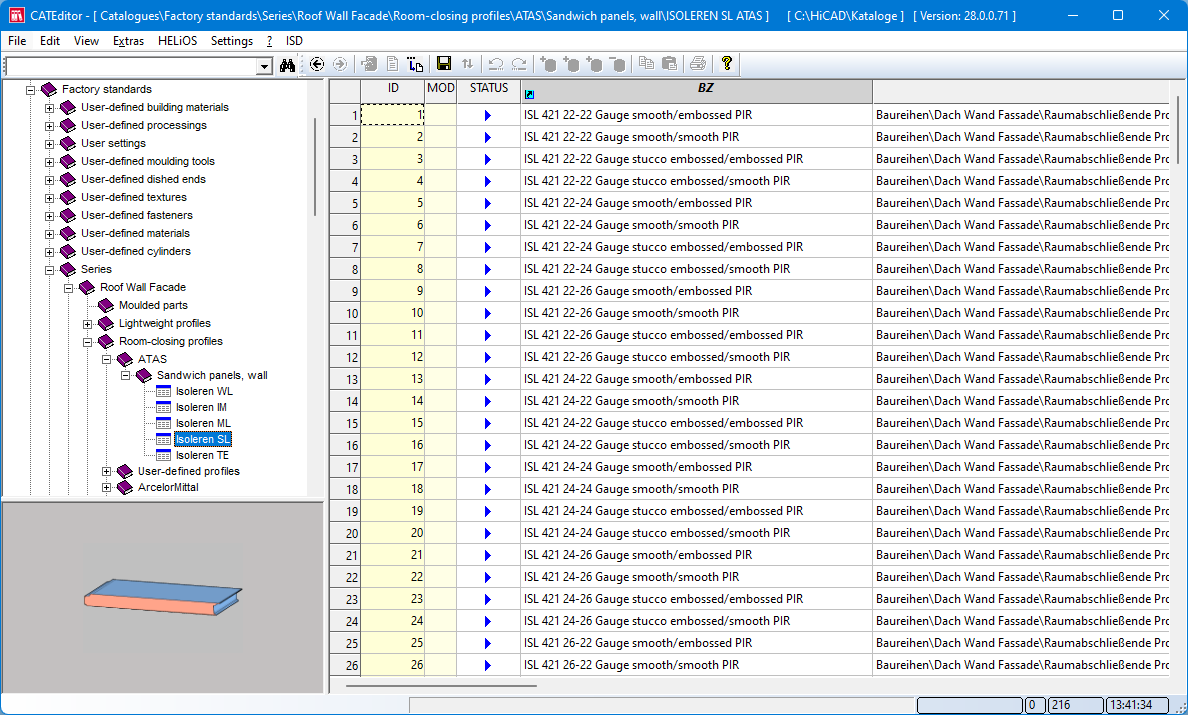

ATAS room-closing elements
In the catalogue Factory standards > Series > Roof Wall Facade > Room-closing profiles > ATAS, new Sandwich profiles will be available from HiCAD 2023 onwards. The catalogue Sandwich panels, wall contains five multi-part profile types:
Sandwich panels
- Isoleren WL,
- Isoleren IM,
- Isoleren ML,
- Isoleren SL and
- Isoleren TE.
New usage for Sheet Metal parts
For Sheet Metal assemblies, i.e. assemblies with a Sheet Metal part as main part, a new Usage called Sheet Metal Assembly is now available. The catalogue Factory standards > Usage has been expanded accordingly.
Further information can be found here.
New UNC and UNF threads
The previous tables for UNC and UNF threads have been replaced by new revised tables. The previous tables have been renamed and marked as deleted; fasteners using these threads have been adapted accordingly.
|
Catalogue |
Table up to HiCAD 2023 |
Table from HiCAD 2023 onwards |
|---|---|---|
|
Processings, general > External thread |
UNC A up to HiCAD 2022 |
UNC A |
|
UNF A up to HiCAD 2022 |
UNF A |
|
| Processing > Thread |
UNC up to HiCAD 2022 |
UNC |
|
UNF up to HiCAD 2022 |
UNF |
The new tables have been created in the unit "inch".
