Example 1 - Step 2: Create / Activate Project (ManBIM)

Management + BIM > Project

To create a new project, or activate an existing project, select the corresponding function in the Project function group of the Management + BIM tab:

	Create project
	Activate project

The example below shows how to create a new project.

1. Select Project > Create project .

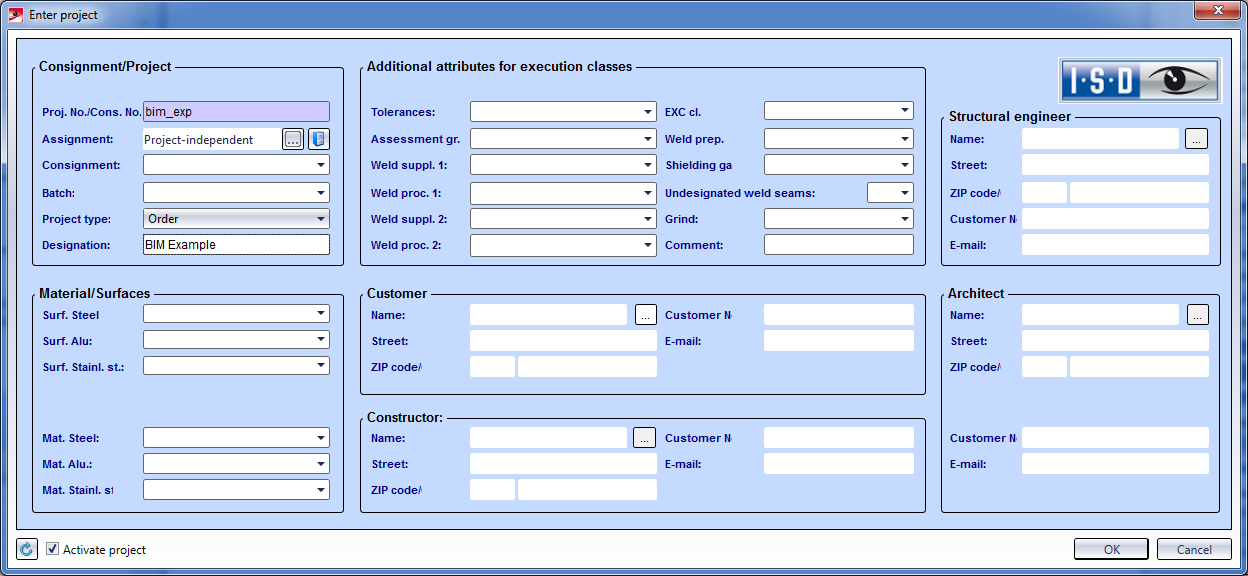

2. The dialogue window for project data input will be displayed:

Enter the project name first, and then enter the desired project data.

You should always fill in the Designation field, as this will be helpful for a later retrieval of documents.

3. Exit the window with OK.
