Information (ManBIM)

Information, All parts in active assembly

This function displays BIM-relevant information for the active part or assembly. The result list can be saved as TXT or CSV file and printed. The following information will be displayed:

• Item number
  A negative item number indicates that the item number is not up to date.

• Itemised source model
  Document master of the model in which the part was itemized.

• Article master

• Article number
• File name
• Part type
• BOM-relevance
• Number (Quantity)
• Modified
  YES indicates that the corresponding part has been modified, but has not been saved yet.
• Semi-finished product
  YES indicates that the semi-finished product (from the HiCAD catalogue) has a HELiOS assignment. NO indicates that this is not the case. Please also read the information given in the Transfer Standard Part Data to HELiOS topic.
• Project-dependent
  Part that do not belong to the active project are indicated by a NO here. This applies, for example, to fasteners that are managed in the database, such as bolts, screws, nuts etc.
• Production drawing
  If a production drawing exists for the part, the document master of this drawing will be displayed.

Example:

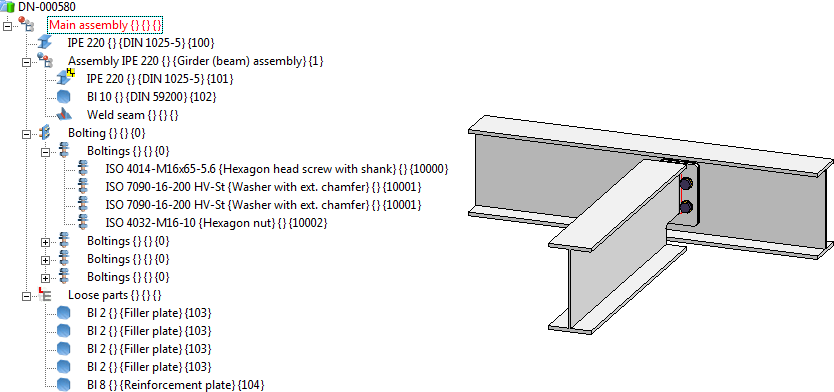

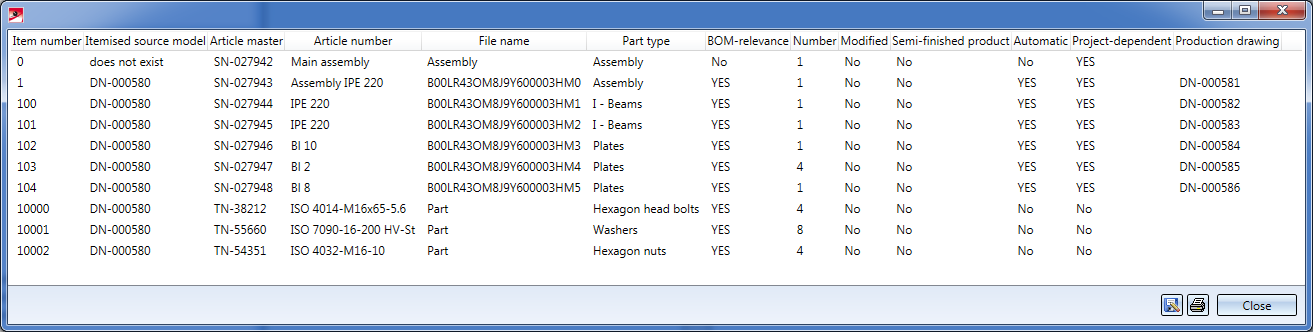

The image below shows two I-beams that have been connected by means of the Design Variant 2320 (Front plate connection to web/flange). the model drawing has been itemized and saved, all drawings are up to date.

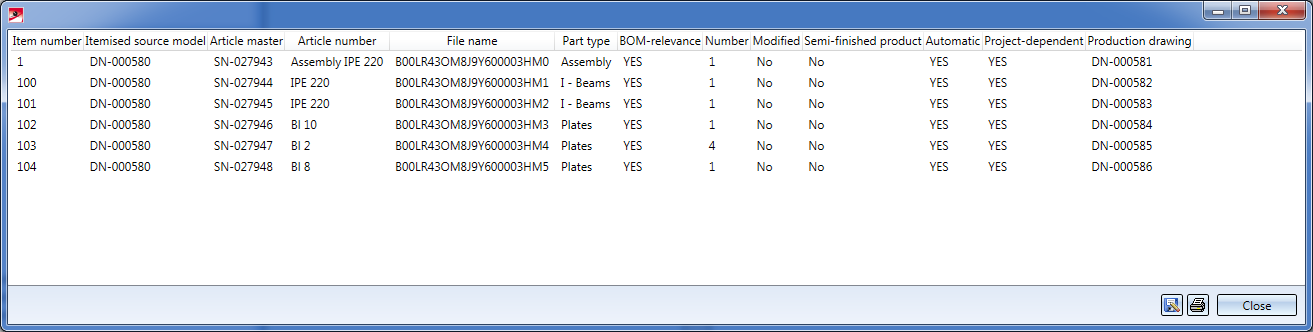

Result list

Clicking opens a pull-down menu with further functions:

Information, BOM-relevant parts

Lists the BOM-relevant parts of the active assembly.

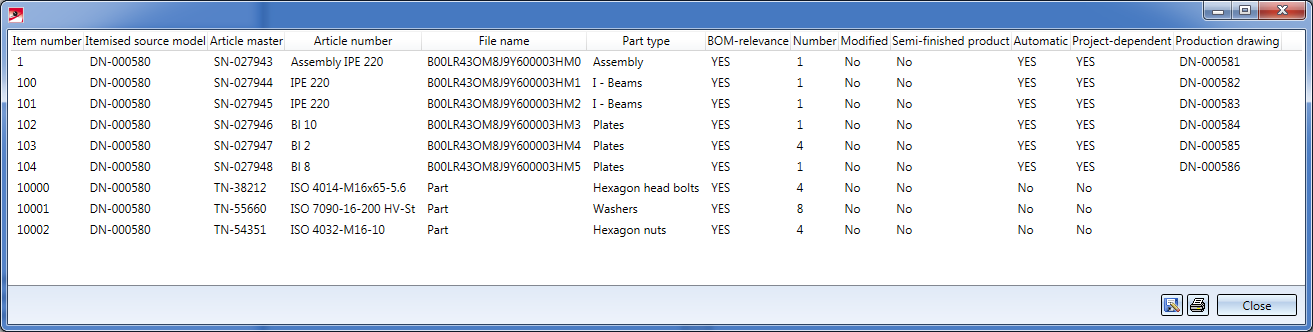

Result list for the above example

Information, Production-relevant parts

Lists the production-relevant parts of the active assembly.

Result list for the above example

Information, Non-project parts

Lists the parts that do not belong to the active project.

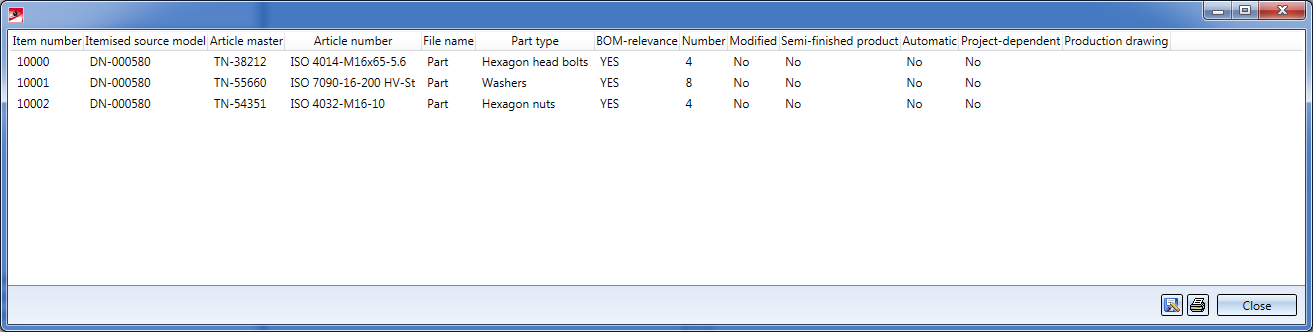

Result list for the above example

Correction, Invalid parts

This function searches in the active drawing for parts with invalid part masters. If such parts are found, these will be listed here. When you close the list you will have the option to remove these article masters.

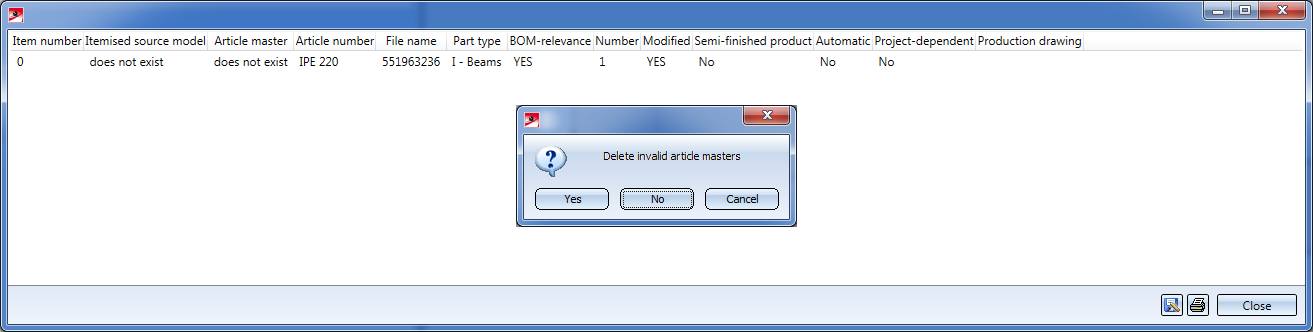

Example
