Metal Engineering 3-D Section
Civil Engineering functions docking window > Civil Engineering, general > Detail and section planning

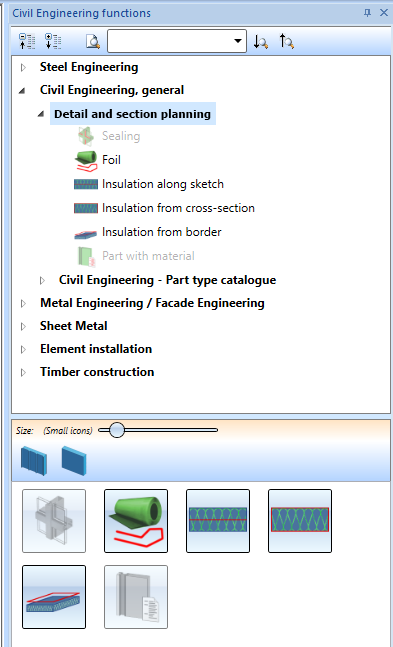

In the Civil Engineering functions docking window at Civil Engineering, general > Detail and section planning you can find the following functions:
Insulation, from cross-section
Please note:
- To be able to use these functions, you need to be in an active 3-D sectional view.
- After their creation, the parts will be automatically updated in the sectional view and displayed as "cut" parts.
- The parameters for annotations will be automatically read out of the part attributes.
- Connecting elements that have been created with the functions beneath "Civil Engineering functions" docking window > Civil Engineering, general > Detail and section planning functions will not be considered in the workshop drawing - even if these elements are BOM-relevant.
