Sheet Metal > New > Pipes + Vessels > Oval on round
This function creates a truncated cone. The part can be created as a Sheet Metal part or as a Solid. Select an Insertion point and enter the necessary Parameters.

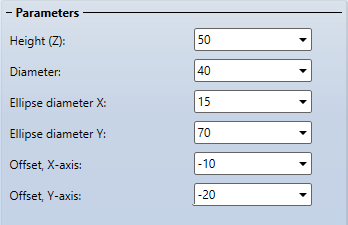

Use Ellipse diameter X and Ellipse diameter Y to define the oval and the Diameter to define the circle. The Height (Z) specifies the distance between the two geometric shapes.
Offset, X-axis and Offset, Y-axis are used to specify a value for the X-axis and the Y-axis to define the inclination of the part.
After you have set the Sheet parameters and the Accuracy criterion, you can specify whether the part should be saved referenced by activating/deactivating the Referenced checkbox. You can then specify an Article number for the part or use the article number preset via the semi-finished product. You can select any Insertion point or enter the exact coordinates using Absolute (A), e.g. (0,0,0) or (100,50,0). There are two points that you can select as fitting point.
