Sheet Metal > New > Pipes + Vessels > Truncated cone
This function creates a truncated cone. The part can be created as a Sheet Metal part or as a Solid. Select an Insertion point and enter the necessary Parameters.

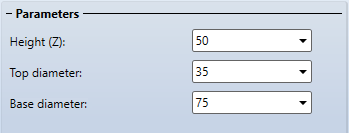

Use the Top diameter and Base diameter to define the upper and lower circle. The Height (Z)specifies the distance between the two circles.

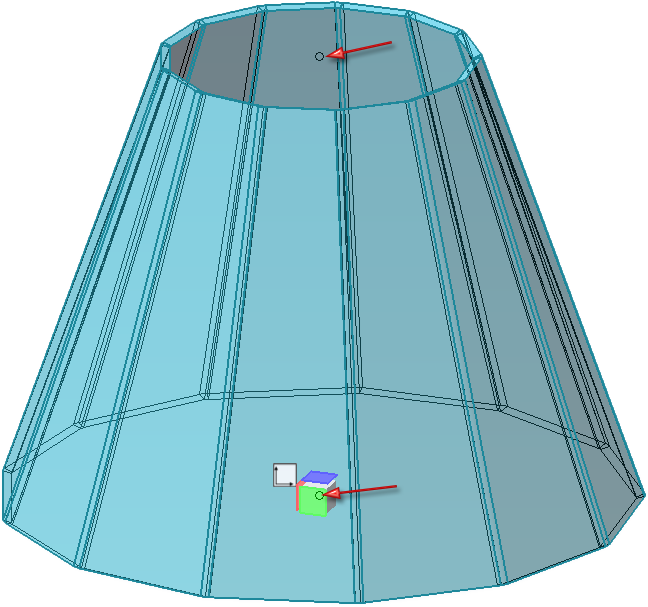

Once you have set the Sheet parameters and the Accuracy criterion, you can activate/deactivate the Referenced checkbox to specify whether the part should be saved referenced. You can then specify an Article number for the part or use the article number preset via the semi-finished product. You can select any Insertion point or enter the exact coordinates using Absolute (A), e.g. (0,0,0) or (100,50,0). There are two points that you can select as fitting point.
