Project Detail Window

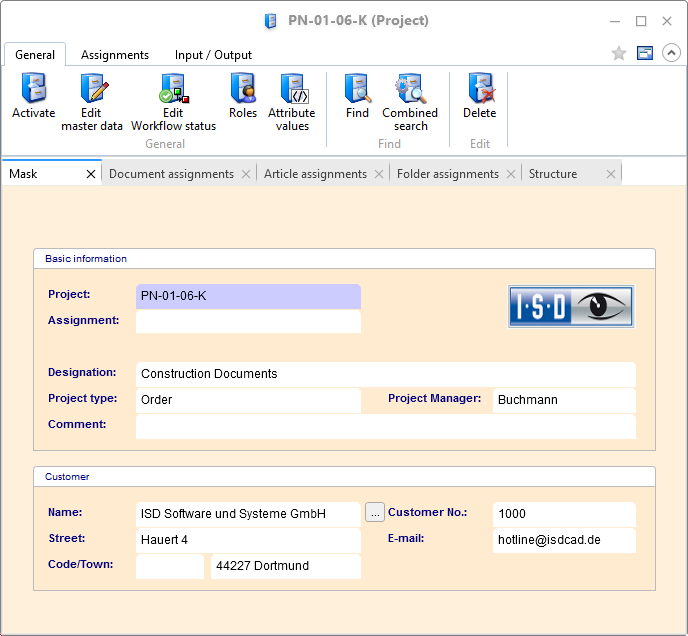

If you double-click a project in a result list, or select Show project... in the context menu, the project detail window will be displayed:

On the General, Assignments and Input / Output tabs of the Ribbon on the top you will find the same editing and processing functions as in the context menu for projects.

On the Mask tab beneath the Ribbon, the project master data is displayed.

The Document assignments, Article assignments and Folder assignments tabs contain lists of the documents, articles and folders assigned to the document.

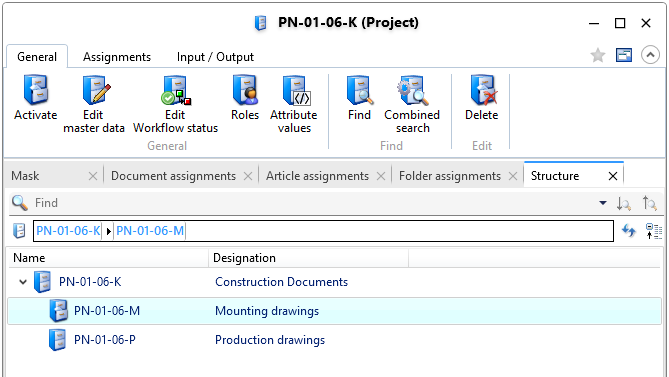

The Structure tab shows you the sub-projects of the active project.



Please note:

In the HELiOS Options at Display > Selectable tabs you can configure which tabs can be shown or hidden at this point or should be excluded from selection.



At the top right of the window you have the option to add the current object to your Favourites, and activate or deactivate the so-called "content focus":

On the Display tab of the HELiOS Options dialogue window you can specify the default setting for the calling of object detail windows (activate or deactivate the Show new contents in same window checkbox).
