Steel Engineering Settings
Steel Engineering > Further functions > Settings
In the Steel Engineering Settings menu, you can define the steel engineering-specific default settings, e.g. for
- the precision of the Weight calculationl,
- the Notch type,
- the Representation of the beams.
The menu is structured as a tab system. In order to make changes to the default settings, simply activate the corresponding tab.
Please note:
- Clicking OK on one of the tabs applies the settings of all tabs and ends the function.
-

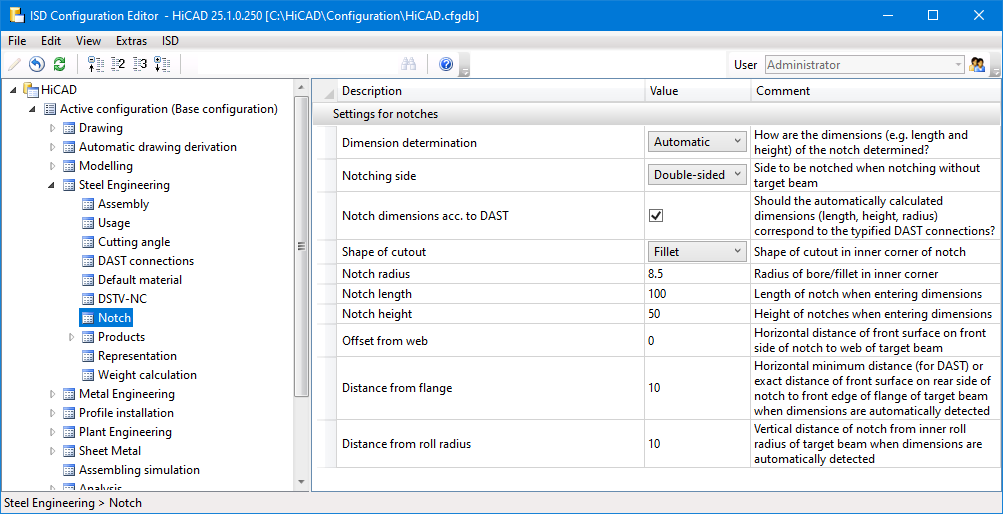

The parameters set here are the default settings for the current HiCAD session. After restarting HiCAD, the settings defined in the Configuration Editor at Steel Engineering > Notch will be the new default values.
In addition, various basic settings for Steel Engineering can also be changed via
Settings > Settings > Steel Engineering.
