Move and Rotate Sketch Elements
Skietch > Transform > Move
> Move+Rotate

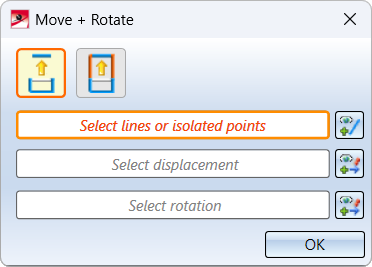

Use this function to move and rotate lines and isolated points of a planar sketch in one step. When you call the function, the Move + Rotate dialogue window will be displayed:
The window is operated in the same way as the Move and Rotate functions.
Example:

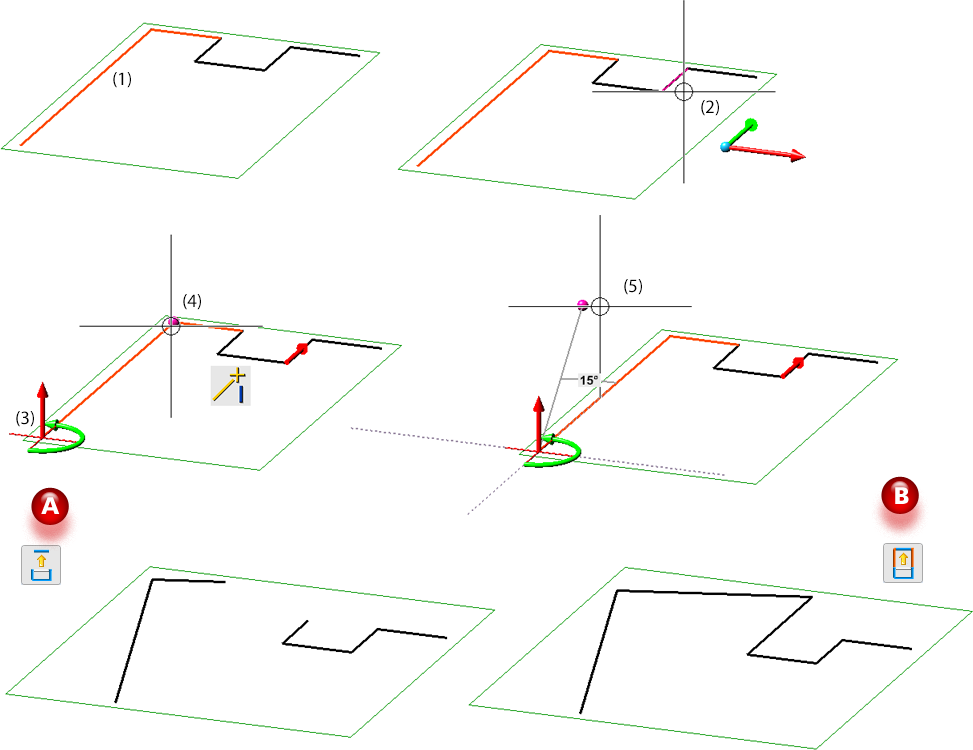

(1) Selected line elements; (2) Displacement direction, (3) Selection of rotation point, (4) Selection of the second point, (5) Angle 15°
A: Result - Move lines individually, B: Result - Preserve connected lines and adjust length
Please note:
- The selected lines and isolated points must belong to the same sketch. Otherwise, a corresponding error message will be displayed.
- HCM constraints will be adjusted or - if not possible - removed.
