Process Form/Positional Tolerances

3-D Dimensioning + Text > Symbols > Form/Pos

Click on the arrow below the symbol to open a menu with editing and processing functions for form tolerances and positional tolerances. The following functions are available:

	Form/Positional tolerances Functionality before HiCAD 2023 SP2
	Show, Only active part Shows hidden form/positional tolerances of the active part again
	Show, All Shows all hidden form/positional tolerances again
	Hide, Individually Hides single form/positional tolerances
	Hide, Only active part Hides all form/positional tolerances of the active part
	Hide, All Hides all form/positional tolerances
	Settings Opens the dialogue window for form and positional tolerances, enabling to change symbols, tolerance values or letters of an identified form/positional tolerance.

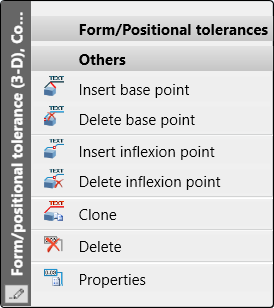

In the context menu for form/positional tolerances, you will find further functions for processing form/positional tolerances.

This allows you to insert and delete base or inflexion points, as well as delete tolerances.

The Clone function allows you to transfer the current tolerance to other parts. To do this, select the desired component and then the reference point.

The Properties function allows you to process the tolerance. For this purpose, the dialogue window Form/Positional tolerances is displayed. Here you can change symbols, tolerance value or letters of the tolerance.

For tolerances created with a version prior to HiCAD 2023 SP2 (2802.0), the earlier dialogue for form/positional tolerances will be displayed.
