Glass Fitting Offset

Steel Engineering > Further functions >Extras > Glass, Fitting offset

You use this function to change the offset of the sealing strips for glass fitting in a series beam

1. Enter the new glass thickness
2. Identify the series beam or a sub-part.

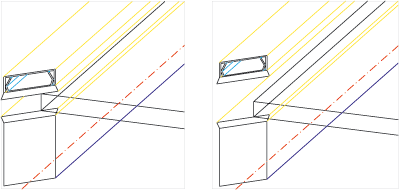

Change glass fitting offset

Notes:

• You can use multiple selection to change the glass fitting offset of several beams at the same time.
• You cannot use the feature log to make this change.
• The glass itself is not changed!
