Report Manager - What's New?
Major Release 2022 (V 2700)
Output of installation surface and installation width
In the BOM template HiCAD_Stahlbau.2700.xlsx the tables Packaging list and Packaging list 2 have been extended by the output of the installation length (the variable DWF_COVER_WIDTH) and the installation surface (DWF_UNCUT_PROFILE_AREA).
Steel Engineering Excel template: Image next to header data

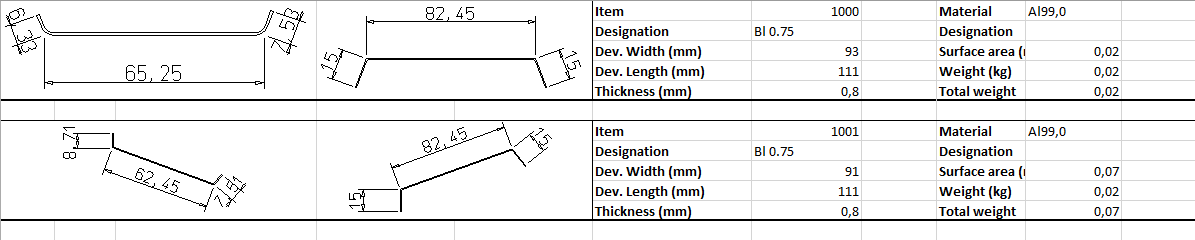

In the BOM template HiCAD_Stahlbau.2700.xlsx the new output formats Sheet Metal parts with image 2 and Packaging list 2 have been added. These differ from the previous outputs in that here the images of the parts are displayed next to their header data:

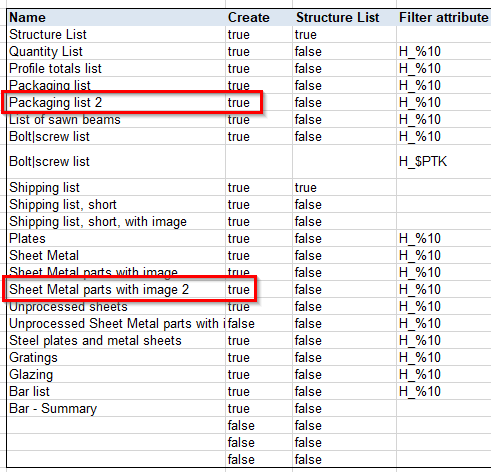

These outputs are disabled by default. You can activate them by opening the file HiCAD_Stahlbau.2700.xlsx in the sys directory of your HiCAD installation and setting the value of the Create column to true on the Settings worksheet for the desired other Excel sheets:
