Sheet Metal > Change length > Corner/Mitre > Through point
In the Through point mode you can mitre cut flanges with or without lengthening through a defined point.
- On each flange, select an edge of the longitudinal side, or right-click and select the front side.
This automatically sets the first intersection point of the mitre; it lies in the theoretical lengthening of the inner edges of the flanges. Right-click to switch to theoretical lengthening of outer edges.
- Then, activate the second intersection point
of the cut plane.
A preview will be displayed.
- Activate the Lengthen
checkbox if you want non-overlapping flanges to be trimmed. - Click OK to apply the preview and close the dialogue window.
If you click Apply, the preview will also be applied, but the window will remain open.

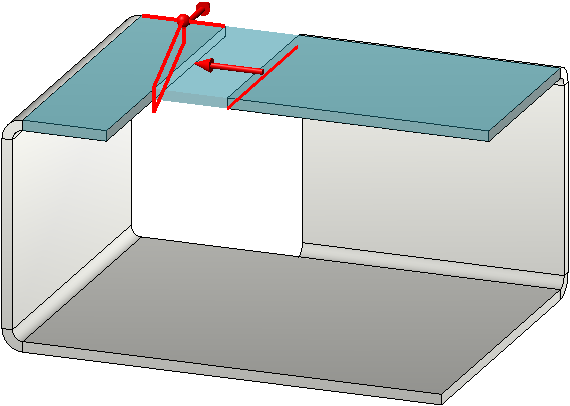

(1) First front side
(2) Second front side
(3) Automatically set first intersection point
(4) Second intersection point

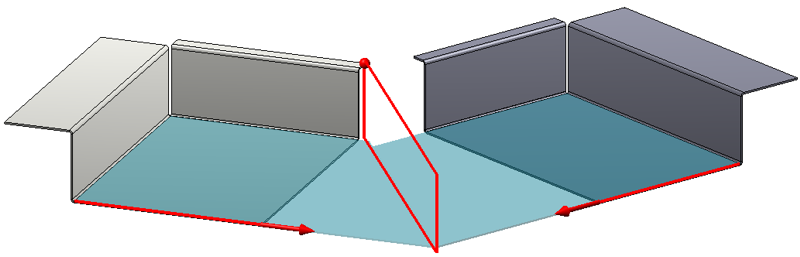

Mitre cut between different sheets

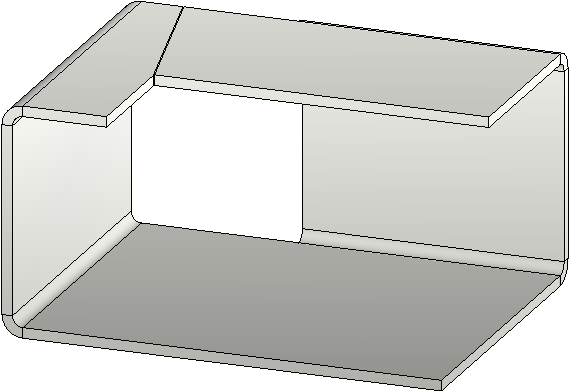

First intersection point through outer edge, changed via right-click
