Connections + Variants (3-D SE)

Steel Engineering > Variants

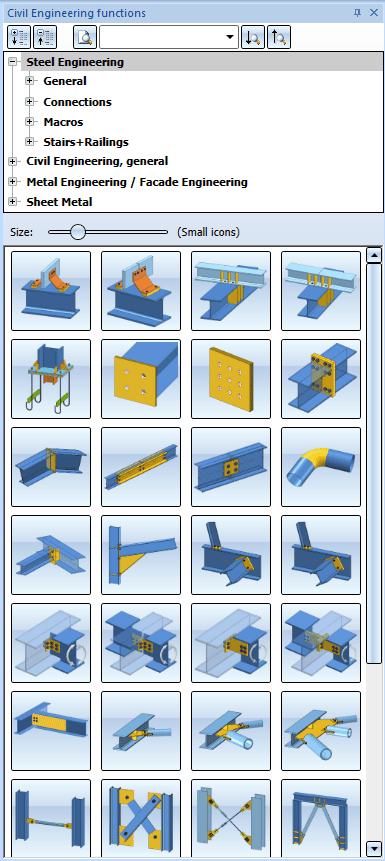

The functions of the Civil Engineering functions docking window enable a fitting of connections, fasteners, stairs and railings as well as predefined Steel and Metal Engineering objects.

The following, additional functions are available via Steel Engineering > Variants:

	Edit connection/Design Variant Use this function to change existing connections (Design Variants) subsequently. Alternatively, you can double-click the corresponding feature log item to edit the connection.
	Copy connection/Design Variant Use this function to copy already inserted connections to other fitting situations.
	Update connections + variants in active part After changing or processing of connected beams, use this function to update the corresponding connection automatically.
	Delete connection/Design Variant Use this function to delete fitted connections.
