Steel Engineering > Variants > Update connections+ variants in active part
Use this function to automatically update connections after applying processings/modifications to the beams which have been joined with each other via the connection.

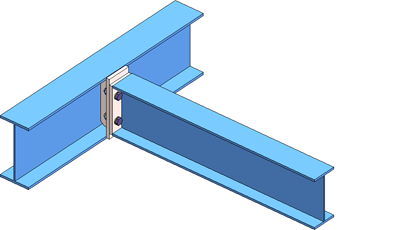

The image shows two beams which have been connected to each other by a beam-to-web girder connection (1211) .

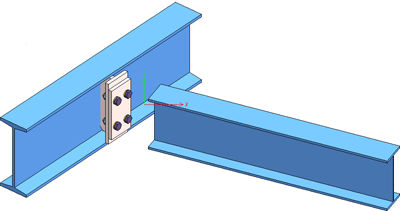

In the image below, the right beam has been rotated. The left beam has been replaced by another beam with the Exchange function.

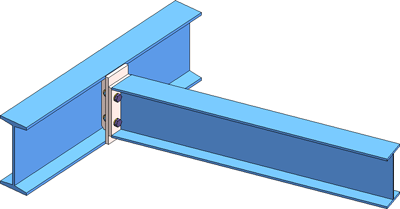

The Update connections + variants ... function adjusts the connection to the new situation.
Important:
Stairs and railings created with the Staircase Generator or Railing Generator can be updated or changed if you have subsequently deleted parts that were created by the corresponding variant. However, these deleted parts will be re-created upon updating if these are required due to the parameters and the geometrical situation.
