Delete Connection (3-D SE)

Steel Engineering > Variants > Delete

Use this function to delete connections that are based on a Design Variant.

Identify an edge of the connection that you want to delete. HiCAD automatically restores the original situation of the corresponding beams.

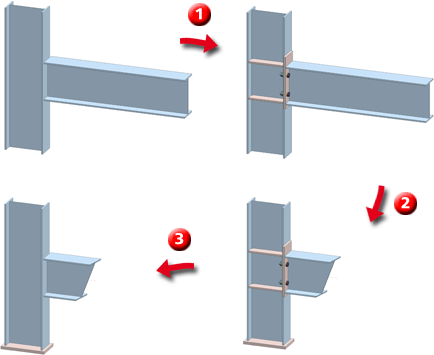

In the example below, the original beams were processed as follows:

1. Fitting of a column connection IH (1320)
2. Fitting of a base plate on the left beam and trimming of the right beam.
3. Deletion of the IH connection.

The connection is deleted and the original situation of the beams is restored. Other processings (base plate, trimming) are retained.

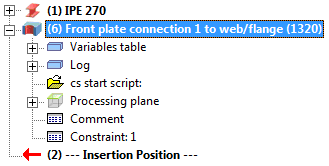

Alternatively, you can also delete connections via the Feature log: Right-click the connection you want to delete in the Feature log and select Delete.
