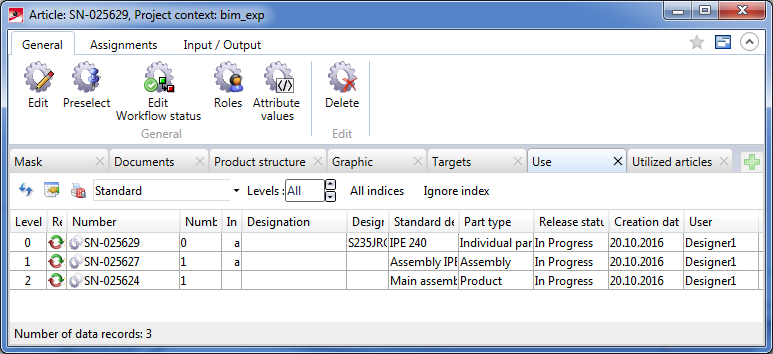

Edit article master
Displays the article master of the active part in the Article dialogue window.
The dialogue window consists of several tabs. Frequently used functions, such as Edit, Delete etc. can also be called via the buttons. Further editing functions can be accessed via the context menus (RMB) of window and tabs.
Clicking the arrow
opens a pull-down menu with further article master functions.
Article master, Select + assign
Use this function to assign a article master that already exists in the database to the active part. If a article master has already be assigned to the part, you can also delete this assignment if desired.
Assign article master, of drawing
Use this function to assign the article master of the active drawing to the to the active part.
Article master, Delete assignment
Use this function to delete the article master of the active part. The part itself will be retained.
Document master
Displays the document master of the active part in the Document dialogue window. Frequently used functions, such as Edit, Delete etc. can also be called via the buttons. Further editing functions can be accessed via the context menus (RMB) of window and tabs.

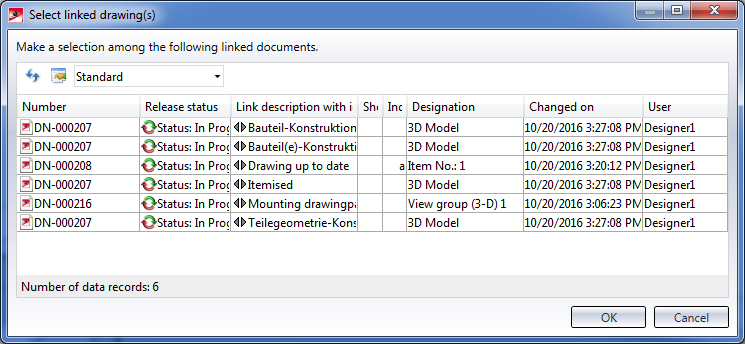

Linked documents
Use this function to load the documentswhich are linked to the active part.
In the dialogue window, select the desired documents by activating the corresponding checkbox and click OK.
