Management + BIM

The Steel Engineering Management + BIM module with its Building Information Modelling (short: BIM) functions is a comprehensive solution for a CAD-independent data and process management for projects, documents, parts, product structures and folders, with user-friendly input, search and output options, and a flexible, PDM-oriented management of users and groups. Configurable classification structures, workflows and indexing mechanisms enable a company-specific control of processes.

The integration of these functionalities into the HiCAD GUI gives direct access to drawing- and part-relevant HELiOS functions in HiCAD, including updating of title blocks and access rights control. For the predominantly project-oriented design tasks in civil engineering and custom machine building, HiCAD additionally provides BIM-and PDM-relevant automation functions enabling a generation and updating of project-related HELiOS article masters and classifications, as well as the management and intelligent updating of automatically generated HiCAD production drawings in HELiOS.

The market-leading 3-D functionalities of HiCAD enable an easy and convenient creation of steel and metal engineering constructions with the help of state-of-the-art design technologies. Production, installation and order documents can be generated and updated automatically via integrated standard functionalities, and can later be safely managed in HELiOS via efficient standard databases.

The extensive data and process management functionalities of the PDM system HELiOS ensure that all departments of a company have access to current data, e.g. 3-D models, production drawings, assembly drawings, bills of materials, NC data, E-mails, letters etc.

The Steel Engineering Drawing Management module is therefore a truly unique comprehensive solution for a fast and easy creation and a convenient management of steel and metal constructions in civil engineering.

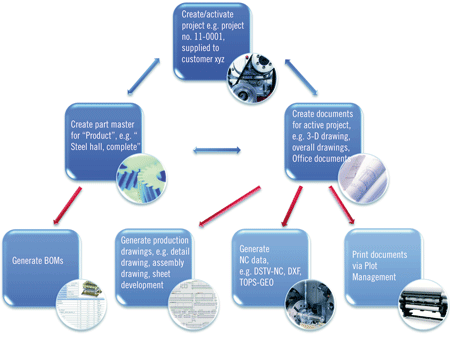

The benefits of the HiCAD Steel Engineering module or a HCAD Steel Engineering suite in conjunction with HELiOS Engineer+:

Safe, database-supported management of drawings and parts for a project-oriented 3-D engineering
Company-wide, CAD-independent access to current data of 3-D drawings (identical parts, item numbers, geometry data...)
BOM-output and parts where-used lists even outside the CAD environment
Automatic updating of part and drawing attributes when saving the 3-D design and creating/updating production drawings
Intelligent check for parts without production drawing and for old drawings, with additional functions for re-creation and updating of linked production drawings
Constantly updated product structures
Direct access to rights/workflow statuses, linked production drawings and parts where-used lists
Flexibly configurable and extendable, hence enabling an optimal integration into existing IT environments

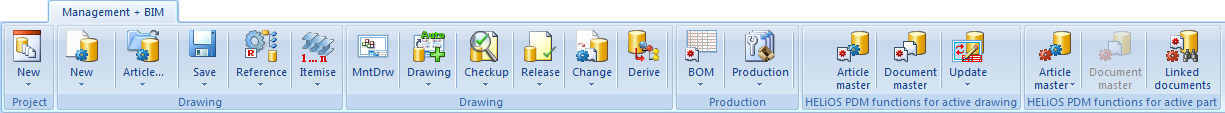

All functions for Steel Engineering Drawing Management functions can be found on the Management + BIM tab:
