Pyramid

3-D Standard > New > Solid primitive > Pyramid

You use this function to create a regular straight pyramid either as a solid body or a hollow body.

Enter the part name. Activate or deactivate the Reference, Feature and BOM-relevant checkboxes.

Now enter the required data.

Mode		Preview	Points direct
Solid body	Hollow	Height Number of corners Corner radius of base surface B Corner radius of top surface D	Number of corners Corner radius of base surface B Corner radius of top surface D
Hollow body	Hollow	Height Number of corners Corner radius of base surface B Corner radius of top surface D Wall thickness	Number of corners Corner radius of base surface B Corner radius of top surface D Wall thickness

If you have selected the Preview mode, position the pyramid in the drawing. The fitting point is the centre of the circumcircle of the base surface.

In the Points direct mode, you define the height by specifying the start and end points of the axis, e.g. Absolute (0,0,0) and (0,0,500).

Notes:

In the case of an even number of corners, you can also enter the width across flats instead of the radius.

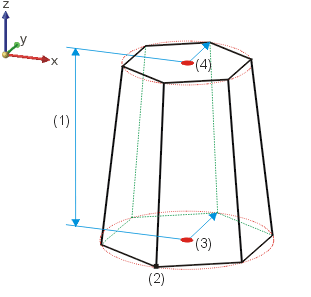

(1) Height, (2) Number of corners, (3) Radius of the base surface, (4) Radius of the top surface
