Installation of the HELiOS/ Zuken E3 Interface
The HELiOS/ ZUKEN E3 interface is created via the HELiOS installation DVD. It can be installed together with the HELiOS Desktop, or separately at a later time.

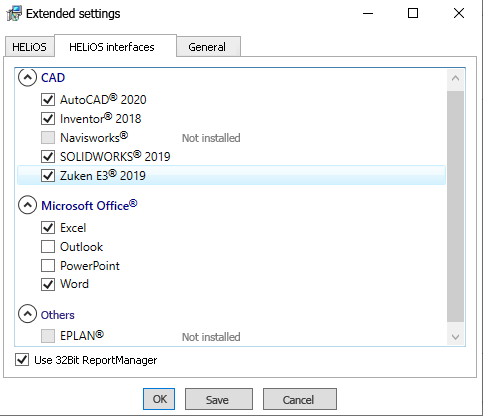

In the Ready to install HELiOS ... dialogue of the HELiOS Installation Wizard, select Extended Settings > HELiOS Interfaces, and select the systems to which you want to create an interface.
In the window you can see the CAD applications that have been installed on the system. Programs that do not exist are greyed out in the window.
If several versions of a software have been installed on a computer, all versions will be offered for selection. Activate the corresponding checkboxes of the versions that you want to interface with HELiOS.
Please note:
A prerequisite for the creation of the interface is that a matching version of ZUKEN E3 already exists on the die computer.

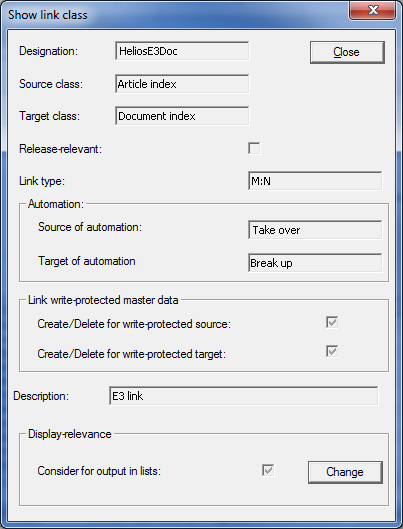

To ensure that the HELiOS / ZUKEN E3 interface works properly, the HeliosE3Doc link must be created in HELiOS:
