Attribute Assignments: User-defined Properties
In the dialogue windows of the Attribute assignment for the Transfer to HELiOS or the Export from HELiOS you can open another dialogue window with User-defined properties.

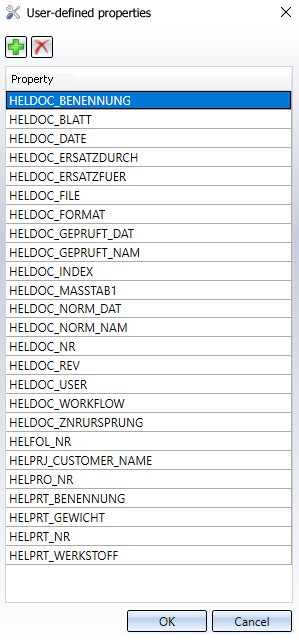

In the dialogue window you will already find a number of pre-defined properties that you can use for the mapping between CAD and HELiOS (e.g. for the output of attributes in title block of drawing frames.
Click on
to add further identifiers if you want.
Enter a meaningful name in the input field and close the window with OK.
As soon as you close the User-defined properties window with OK as well, the property will be added and can be used for attribute assignments between CAD and HELiOS.
