CAE/CAD Interfaces
Besides an interface to MS Office, HELiOS supports interfaces to the following external software products:
- HiCAD
- AutoCAD
- Inventor
- Navisworks
- SOLIDWORKS
- EPLAN Electric
Please note:

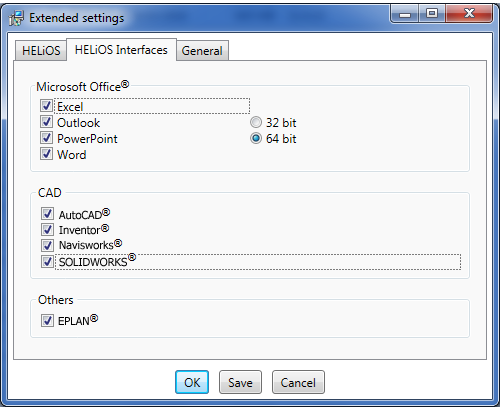

- The interfaces can also be added subsequently via the HELiOS Interfaces tab of the HELiOS installation wizard. (in this case, select Change installation),
You can also add them via Windows: Select Start >Default programs > Programs and Features. Then, right-click HELiOS on the list and select Change. Further information can be found in the Installation Notes guide that is supplied with your installation DVD.
- When creating an interface between HELiOS and one of these CAD systems, please make sure that the Bit versions of HELiOS and the external software are identical: For example, an interface between 32Bit versions of external software products and a 64 Bit version of HELiOS 2014 is not possible!
