Display of Positional and Dimensional Constraints

Sketch > HCM > Toggle visibility of constraints/ /

Use the Toggle visibility of constraints function to influence the display of positional and dimensional constraints.

Via the button you can toggle between the following display modes:

• Show positional and dimensional constraints
• Show only dimensional constraints
• Show neither positional nor dimensional constraints

A click on the button switches to the next display mode. The settings of the display mode affect all sketches in the drawing, and not just the active sketch.

Please note:

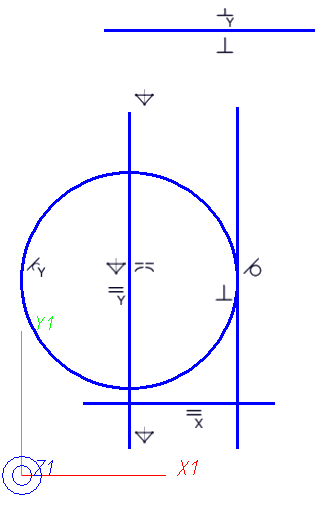

When you select a positional or dimensional constraint in the HCM window of the ICN, it will even be shown in the drawing if the display of dimensional constraints has been switched off with this function. Positional constraints will always be displayed in the vicinity of the affected graphical elements:

This clearly illustrates which positional constraints have been assigned to which graphical elements.
