Project: HiCAD Basics
A keyboard shortcut can be assigned to each command of the Ribbon, enabling you to access the Ribbon functions via the keyboard if desired.
To define a keyboard shortcut for a function, right-click the Customize QuickAccess Toolbar. In the Customize dialogue and mark the desired function there.
If a shortcut has already been defined for this function, it will be shown in the Shortcut field.
To delete a shortcut, click the
symbol.
To change a shortcut or define a new one, click in the Shortcut field and enter the desired shortcut. If the entered shortcut already exists, this will be indicated by the
symbol. If you move the cursor over this symbol, it will be shown where the shortcut is currently used or that it is a reserved shortcut (macro conflict).

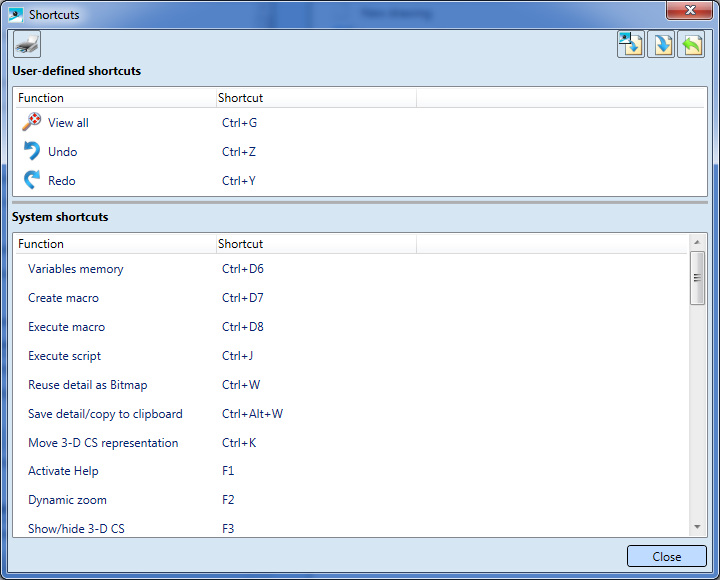

Click the Shortcut button to view a list of the existing customized as well as the default shortcuts.
The default shortcuts can not be modified.
However, if you select a customized shortcut, the function which belongs to the key combination will be marked at the same time in the dialogue box Customize. You can delete or change the shortcut (right mouse button) as well as modify the key combination. The list will be updated automatically.
The meaning of the symbols
|
|
Prints the list of shortcuts. |
|
|
Reset Restores the default shortcuts defined by the ISD. |
|
|
Export You can export the current shortcuts to a file which can then be imported to other computers and utilized by others (e.g. colleagues). Select the storage location and enter the name of the export file. The file name extension is .accel. |
|
|
Import Imports an .accel file. In this way it can, for instance, be achieved that the shortcuts are identical on all workstations.
|
Please note that confirming with OK is only possible if the
symbol is not displayed. This symbol indicates incorrect inputs, e.g. the input of a reserved shortcut.
User Interface • Keyboard Layout
|
© Copyright 1994-2019, ISD Software und Systeme GmbH |
When you import .accel files, all current settings will be lost! It is therefore recommended to make a backup of your current shortcuts with the Export function before performing the import.
