Connections + Variants (3-D SE)

Steel Engineering > Variants

The functions of the Steel Engineering functions docking window enable a fitting of connections, fasteners, stairs and railings as well as predefined Steel and Metal Engineering objects.

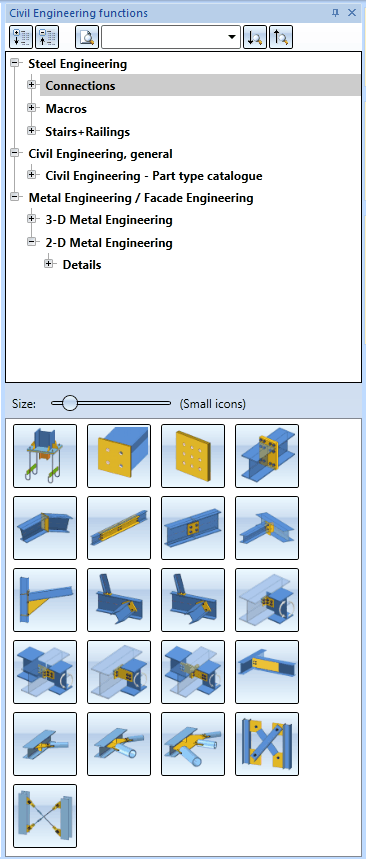

The Civil Engineering functions docking window

The following, additional functions are available via Steel Engineering > Variants:

Copy connection/Design Variant

Use this function to copy already inserted connections to other fitting situations.

Update connections + variants in active part

After changing or processing of connected beams, use this function to update the corresponding connection automatically.

Delete connection/Design Variant

Use this function to delete fitted connections.
