Steel Engineering > Variants > Update connections+ variants in active part
Use this function to automatically update connections after applying processings/modifications to the beams which have been joined with each other via the connection.

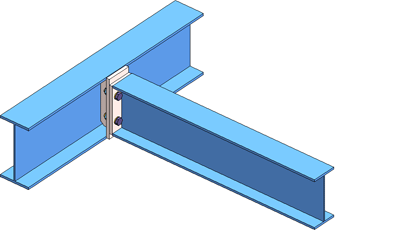

The image shows two beams which have been connected to each other by a beam-to-web girder connection (211) .

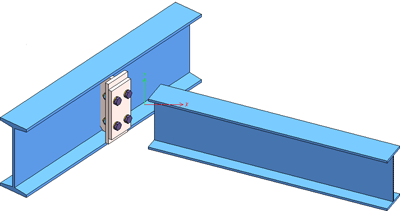

In the image below, the right beam has been rotated. The left beam has been replaced by another beam with the Exchange function.

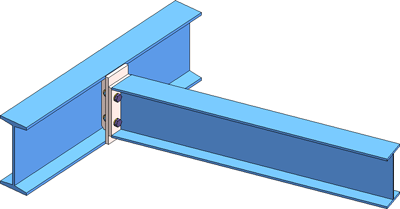

The Update connections + variants ... function adjusts the connection to the new situation.
