Adjust Bend Zone with Transition (3-D SM)

Sheet Metal > Process > Extras > Adjust bend zone (outer transition)

Sheet Metal > Process > Extras >Adjust bend zone (inner transition)

To adjust a bend zone to 2 sheets of varying length, choose one of the two functions. Then identify the front side of the bend zone. Depending on the function you choose, the bend zone is assigned an internal or external transition.

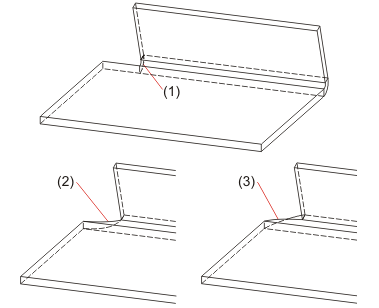

(1) Front side of the bend zone
(2) Outer transition
(3) Inner transition

To identify the front edge more easily, choose the Display only active part function.
