Saving the Drawing (BIM-PLM)

Before creating the workshop/detail drawings, first itemize, and then save the drawing. To do this, use the corresponding functions on the PDM tab.

Proceed as follows:

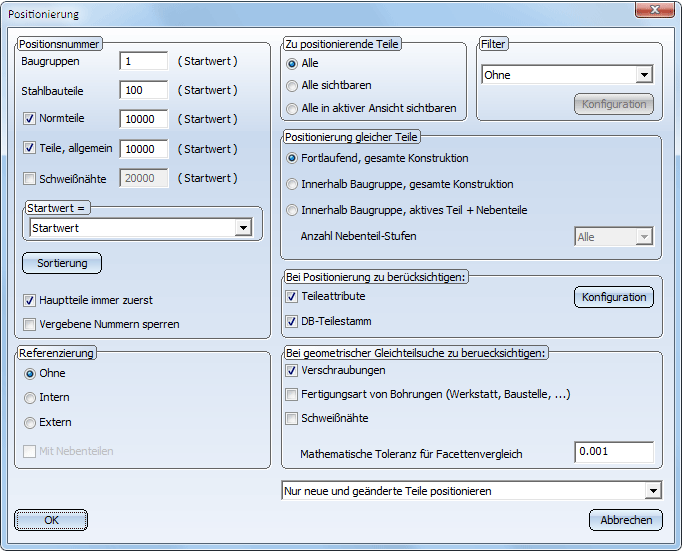

1. Select the Drawing > Auto > ... with options function to itemise the drawing.

Make the required settings and click OK to close the window.

2. Select PDM > Save drawing .

Model, axonometric view

Model in the ICN, before saving

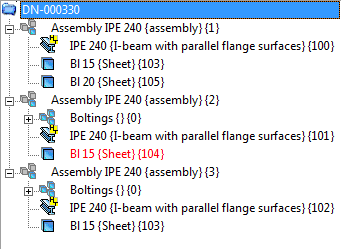

Model in the ICN, after saving

You can now directly display the current links and the product structure in HiCAD or in the HELiOS Desktop.

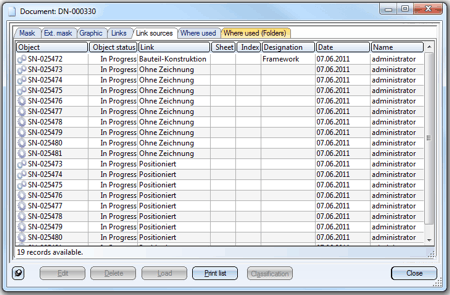

To display the links, select PDM > HELiOS PDM functions for active drawing > Document master for active drawing .

In this way you can check which parts have been itemised, and whether a drawing already exists for the parts.

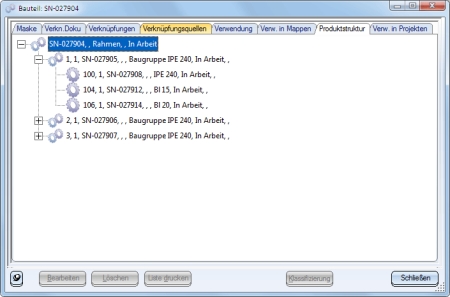

The product structure, too, can be Displayed product structure. To do this, select PDM > HELiOS PDM functions for active drawing > Part master for active drawing .

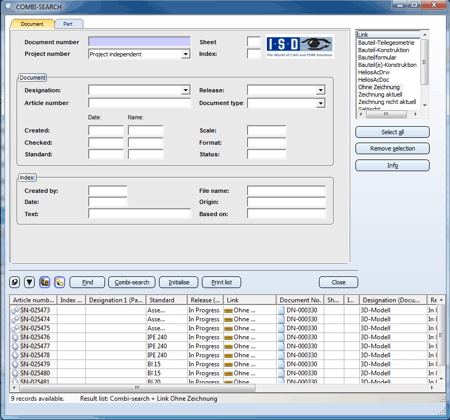

This information can also be obtained via the Combined search via documents and parts function of the HELIOS Desktop.

Create Parts / Edit Parts (BIM-PLM) • Create / Add / Update Drawings (BIM-PLM)
