Part Data Synchronisation with HiCAD Catalogue (PE)

Plant Engineering > Part Data Tools > Part data synchronisation

If Catalogue is selected as the part data source (Parts from...) on the Part selection tab in Plant Engineering Settings dialogue, the function automatically calls the VarToCat program, enabling you to import the part data from part data archive files (VAA or PAA) to the HiCAD Catalogue.

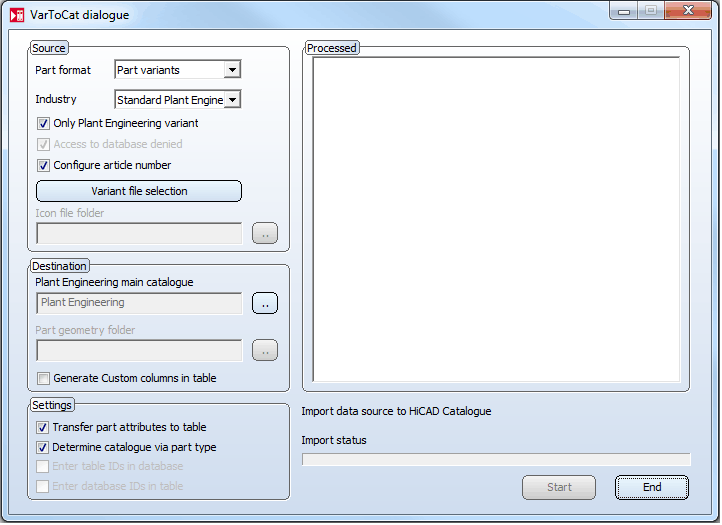

Transfer of VAA archive files
Transfer of PAA archive files

Transfer of VAA archive files

To transfer VAA archive files, select Part variants in the Part format field.

An explicit selection of the Industry is normally not required, as the archive already contains the industry information. If this information is missing, HiCAD will issue the message: Archive contains no part type ID information.

Click the Variant file selection button to select the desired VAA or VAD files.

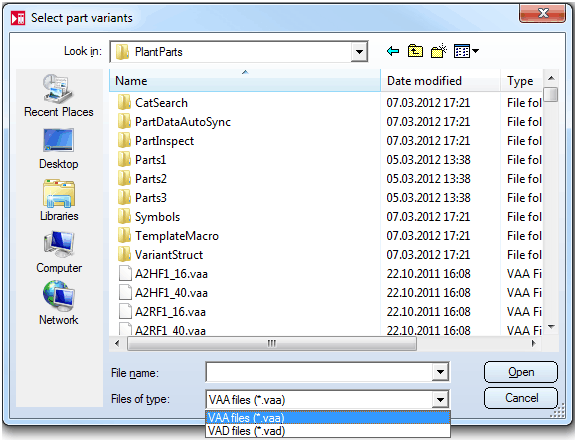

File selection

If the selected VAA file contains no language information (i.e. if it contains no language-dependent attribute data), a language selection dialogue will be displayed. Select the required language from the list and confirm with OK. If you select Cancel, the language used by HiCAD will be used as the working language. The selected language will be assigned to the attribute data that you will enter in the following steps.

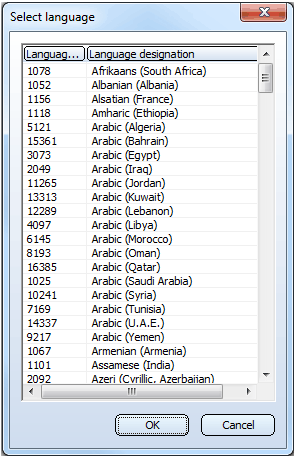

Language selection

An archive file can also contain the attribute data in several languages. However, the data can currently be transferred to the HiCAD Catalogue in only one selected language.

If the Configure article number checkbox has been activated, a dialogue as shown below will appear. The article number configuration in the archive file will be displayed for the language that was selected from the list box. If the list box allows the selection between different languages, choose the desired language, whereupon the displayed article number configuration will be updated. You can also overwrite the configuration. The change will only be used for the catalogue, but will not be written to the VAA archive.

(If the archive file contains no language information, the input field of the dialogue is initially empty, and the list box for language selection will only offer the language that was chosen as working language in the step above.)

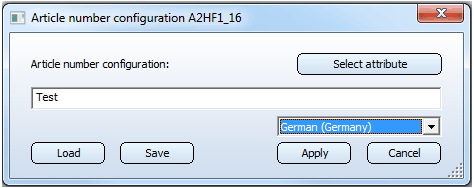

Article number configuration

Click Apply to confirm the final article number configuration.

Next, the dialogue for constant attributes appears. It displays the attribute values in the archive file for the language that was selected from the list box. If the list box allows the selection between different languages, choose the desired language, whereupon the displayed attribute values will be updated. You can also overwrite the attribute values in the input fields that are not locked. The change will only be used for the catalogue, but will not be written to the VAA archive.

(If the archive file contains no language information, the input fields of the dialogue are initially empty, and the list box for language selection will only offer the language that was chosen as working language in the step above)

Click OK to confirm the final attribute values.

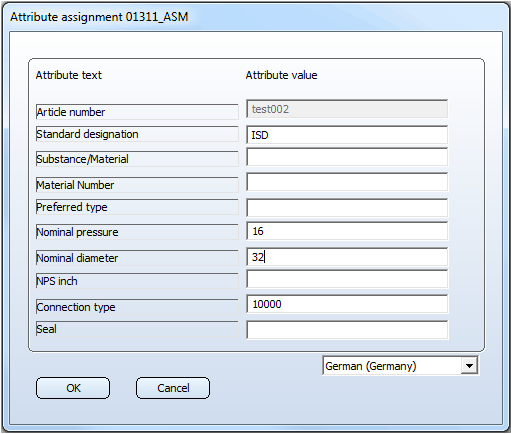

Attribute assignment

Missing language-dependent texts will be identified by <text_input>. Such entries must be overwritten, otherwise the warning Language-dependent texts are still missing (identified by ‘<text_input>‘ ., and the dialogue cannot be closed.

Next, the dialogue for the linking of tables to standards. Select the standard by clicking the checkbox or the column of the country standard, and confirm with OK.

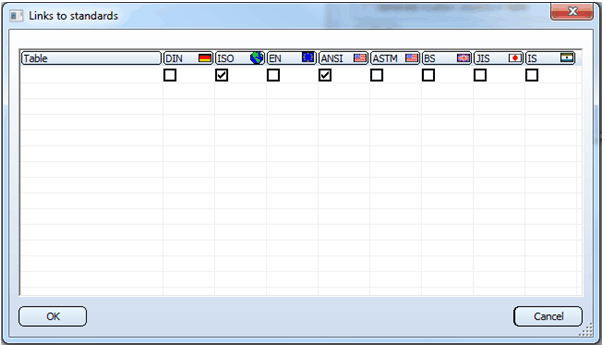

Links to standards

The archive files are now prepared for the import to the catalogue system. You do not need to care about the selection of the Plant Engineering sub-catalogue determined by the part type, as the archive already contains the part type information.

Next to the Start button you can choose a language version for all VAA files selected for the import to the catalogue. This language will then be assigned to the data imported to the catalogue. The list box offers all languages that are contained in the selected VAA files. The HiCAD language is set by default. Click the Start button to start the import.

(If none of the selected VAA files contains any language information, this list box will only contain the working language selected above.)

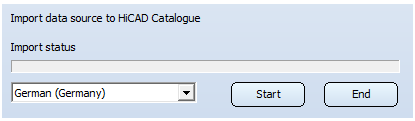

Language selection (Import)

It is possible that not all VAA files contain the selected language. In such cases an appropriate message will be issued during the import process:

Example: Not all archives contain the language version (German (Germany)).

For each VAA file a table will be generated in the HiCAD Catalogue. The processes files will be logged with the format [CatalogueName: TableName].

Log

Transfer of PAA archive files

This option functions in a similar way as the Import of VAA archives.

Select Individual parts as part format.
Click the Variant file selection button.
Select PAA or KRA files for import.
Define the article number configuration and the constant attributes.
Set the links to the standards.
Replace the question mark with a table name for Target specification.
Select a language version and click Start.

For each individual part only one table row will be generated.
