Views > New > 4 standard views
Use this function to create in one step the front view, side view (left), top view and axonometric view. All other views, with the exception of the list views and sectional views, will be deleted. The side view and the top view will automatically be linked to the front view. This means that if you move the front view, the side view and the top view will also be moved.
Related Topics
Sectional Views and Detail Views (3-D) • View Functions (3-D) • Create and Edit Sheet Areas (3-D)
Version 1702 - HiCAD 3-D | Date: 9/2012 | © Copyright 2012, ISD Software und Systeme GmbH

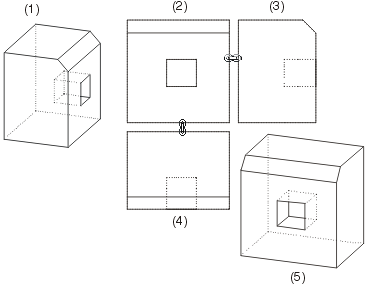

4 standard views: (1) Original part, (2) Front view, (3) Side view, from left, (4) Top view, (5) Axonometric view
icon below the
icon opens a menu containing the
function. This function creates in one step all 6 standard views. The created views will automatically be linked to the front view. This means that if you move the front view, all other views will also be moved. Furthermore, the back view will be linked to the side view (left).
