Wrap (3-D)

3-D-Standard > Process with sketch > Wrap

Use this function to create raisings, indentations and imprints on parts by wrapping of sketches onto part surfaces. Proceed as follows:

1. Create a sketch for the wrapping.
2. Select the part that you want to process.
3. Activate the Wrap function. The Wrap dialogue window will be displayed. In the drawing, the selected part will be highlighted in green colour.

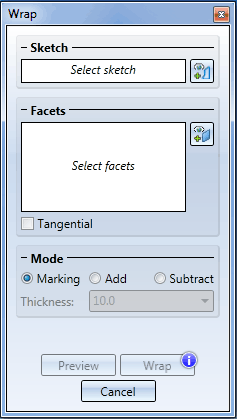

The Wrap dialogue window

If mandatory specifications are still missing, the symbol will be displayed at the bottom of the window. If you move the cursor on the symbol, a message informing you which steps are still necessary before the function can be executed, e.g. the identification of the sketch.

Sketch

Click the icon and identify the sketch for the wrapping in the drawing. The sketch needs to fulfil the following criteria:

• The sketch must be planar.
• The sketch may only consist of one straight line and an auxiliary geometry.

If a correct sketch has been identified, the Identify sketch prompt will be replaced by the entry Sketch.

Facets

Click the icon and identify the surface of the part that you want to process. If the Tangential checkbox has been activated, HiCAD will also process the surfaces that are connected to the selected surfaces via tangential edges.

Mode

In this area you specify the processing mode:

• Add
  An extruded solid with a defined thickness will be derived from the sketch and added to the selected facet.

• Subtract
  An extruded solid with a defined thickness will be derived from the sketch and subtracted from the selected facet.
• Marking
  The sketch will be placed as a pattern onto the selected facet.

Click Preview to display a preview of the processed part in the drawing. If the operation cannot be performed due to missing mandatory specifications, the symbol will be displayed at the bottom of the window.

The actual operation will be performed when you click the Wrap button.

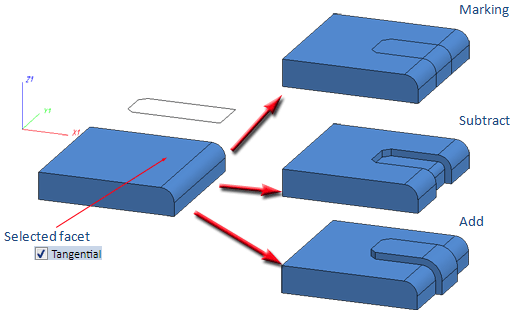

Left: Original with sketch, Right: Processing modes

Further examples

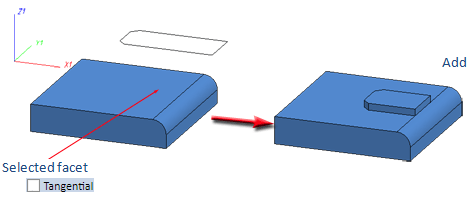

Adding of extruded solid to facet, without tangential connection

(1) Original part with sketch, (2) Add, Tangential checkbox inactive

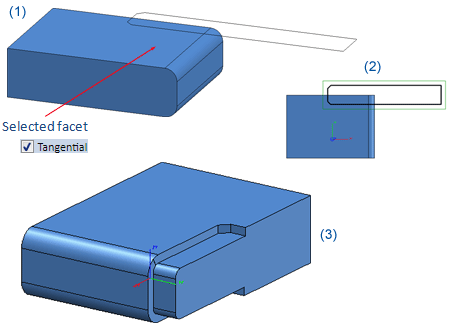

Subtraction of extruded solid, with several tangentially connected surfaces

(1) Original part with sketch and selected facet, (2) Top view, (3) Processed part (rotated), Mode: Subtract, Tangential checkbox active

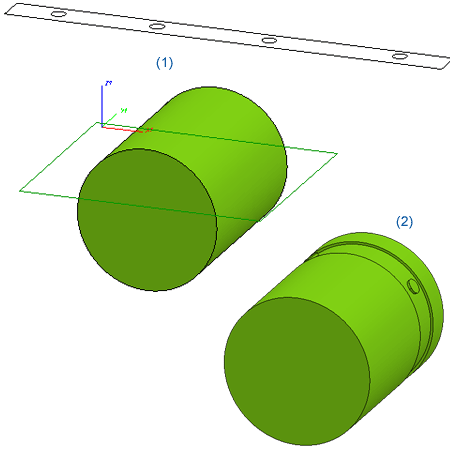

Wrapping around a cylinder

(1) Original part with surface. Selected surface = lateral (barrel) surface; (2) Wrapping of sketch around cylinder, Mode: Subtract

The wrapping will be recorded in the feature log and can be modified via the feature log subsequently.
