Mirror Sketch Elements (3-D)

Sketch > Transform > Mirror...

Use this function to mirror individual graphical elements of the active sketch. Proceed as follows:

Identify the graphical element.
Specify a straight line for the mirroring.

Clicking opens a menu with further mirroring functions:

Mirror sketch, on edge *
	Mirror individual GE, on edge Mirrors a complete polyline of the active sketch on an edge.
	Mirror entire sketch, on edge Mirrors the active sketch on an edge.
Mirror sketch, on 2 points *
	Mirror individual GE, on 2 points Mirrors individual graphical elements of the active sketch on a mirroring axis specified by 2 points.
	Mirror polyline, on 2 points Mirrors entire polylines of the active sketch on a mirroring axis specified by 2 points.

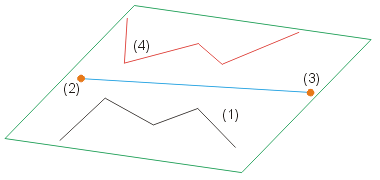

	Mirror entire sketch, on 2 points Mirrors the active sketch on a mirroring axis specified by 2 points. Example (1) Original, (2) 1st point of mirroring line , (3) 2nd point of mirroring line, (4) Mirrored sketch
Mirror 3-D sketch **
	Mirror c-edge, via 2 edges Mirrors the active 3-D sketch. The mirroring plane is defined by identification of two edges.
	Mirror c-edge, via edge + point Mirrors the active 3-D sketch. The mirroring plane is defined by identification of an edge and specification of a point.
	Mirror c-edge, via 3 points Mirrors the active 3-D sketch. The mirroring plane is defined by specification of 3 points.

* only for planar sketches, ** only for 3-D sketches

The Clone functions work in the same way as the same-named Transform functions. When using the Clone functions, you need to additionally specify the number of copies ("clones"), including the original.
