Mirror Part (3-D)

3-D Standard > Transform > Mirror

The active object is mirrored on a plane which can be defined as follows:

Function

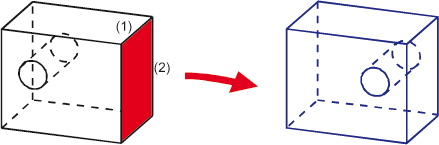

	Mirror part, via 2 edges The mirroring plane is defined by identification of 2 edges. Example
	Click to open a menu with further mirroring functions:
	Mirror part, on 2-D line The part is mirrored on an existing 2-D line.
	Mirror part, via two 2 points The part is mirrored on a line defined via 2 points.
	Mirror part, Edge/Point The mirroring plane is defined by identification of an edge and specification of a point. Example

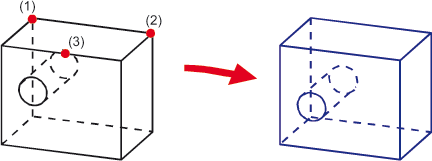

	Mirror part, 3 points The mirroring plane is defined by specification of 3 points. Example
	Mirror part, XY-plane Uses the XY-plane of the current coordinate system
	Mirror part, XZ-plane Uses the XZ-plane of the current coordinate system
	Mirror part, YZ-plane Uses the YZ-plane of the current coordinate system
