Insert Drawing Frame from HiCAD 2 (HICADPDEM)

Before you can load a drawing from HiCAD2 in HiCAD, previous changes in the SCHRFELD.DAT file will be required.

As the default texts for the variable entries in the title block in HiCAD have changed (compared to HiCAD 2) , you need to assign old default texts (HiCAD 2) to new default texts (HiCAD) in the SCHRFELD.DAT file.

Example of a new default text in HiCAD: @*@30,D.HEL_DOKUNUMMER@*@

Please note: Changes in the SCHRFELD.DAT file must be made before you load the drawing.

Proceed as follows:

1. Load the SCHRFELD.DAT file.
2. Enter the default texts for the title block entries valid for HiCAD in the fifth column. Further information on index entries can be found in the HELiOS 2 user guide.
3. Save the changes.
4. Load the drawing.

The changes will be made automatically by HiCAD, so that all defined entries will be included in the title block.

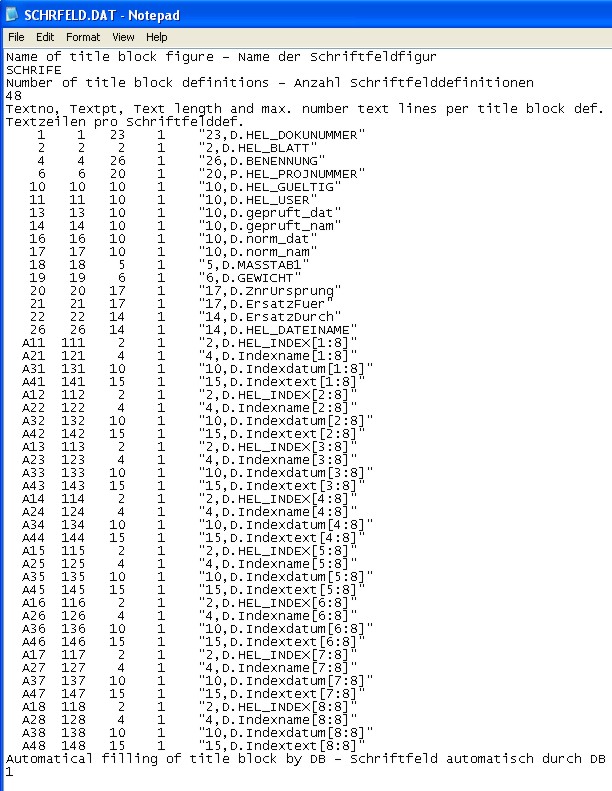

SCHRFELD.DAT

The SCHRFELD.DAT file: Example
