Configuration of Assignments

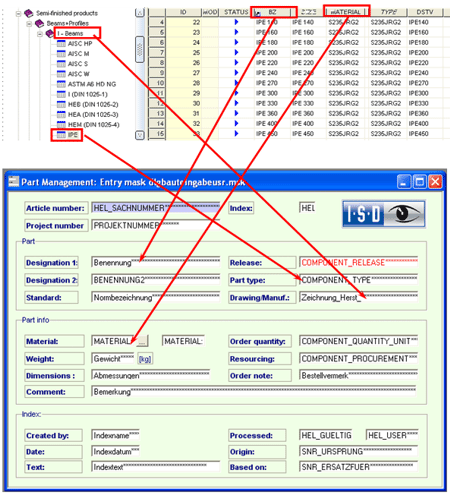

In principle, each table row (i.e. each data record) in the Catalogue Editor corresponds to a part in HELiOS. The assignment of information in the Catalogue Editor to the corresponding attribute fields in HELiOS can be seen below:

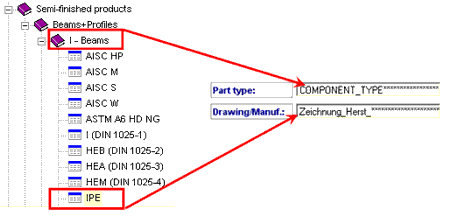

Schematic assignments, e.g. for I-beams, IPE

Generally one distinguishes between the following types of assignments:

• Attribute associativity: Catalogue -> HELiOS Part Master Management
• Attribute associativity: HELiOS Part Master Management --> Catalogue

Attribute associativity: Catalogue -> HELiOS Part Master Management

• When transferring catalogues, tables or records to HELiOS, the catalogue attributes Table ID and Row ID are automatically transferred for each entry. These attributes make the entry identifiable, which enables the record "Catalogue->HELiOS Part Master Management" to be updated and ensures that updates are only made within the defined assignment.
• For the catalogue attributes Catalogue name and Table name, optional attribute assignments are possible via HELiOS Part Management, which provides the HELiOS user with information. Use the Settings function in the HELiOS menu to specify such assignments.

Example setting

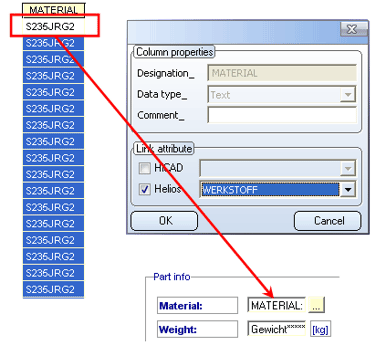

• You can configure, via the column properties in the individual tables, further arbitrary attributes for a Catalogue -> HELiOS Part Master Management transfer. When assigning a part master via HELiOS Part Master Management, the appropriate configurations from the catalogue are then transferred to the HELiOS Part Master Management attribute. Proceed as follows:

1. Right-click the heading of the required column.
2. Select Column properties.
3. Specify the required assignment.

Example setting

Please note that no transfer (no Catalogue->HELIOS Part Master Management associativity) takes place when updating the catalogue. It is therefore possible that the data in the catalogue and in HELiOS Part Master Management do no longer correlate after an update has been made!

Attribute associativity: HELiOS Part Master Management -> Catalogue

Please note that it is not possible to transfer attribute contents from HELiOS Part Master Management to the catalogue.

If, for instance, you want the Article number to be displayed in the catalogue as well, this needs to be specified via the transfer direction Catalogue -> HELiOS Part Master Management. Proceed as follows:

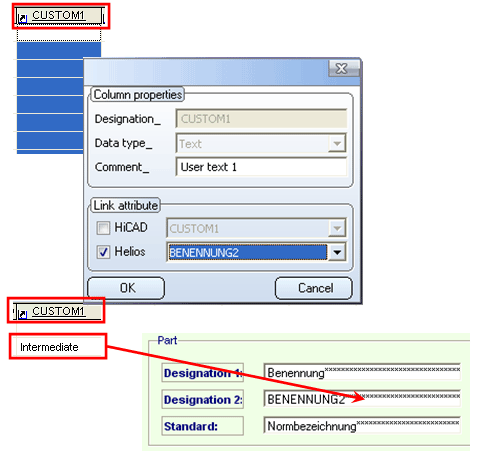

1. In the CATEDITOR, enter the HELiOS Part Master Management Article number as an assigned attribute in an additional catalogue column, i.e. Custom1 or Custom2 .
2. Then transfer this catalogue, the table or the records to HELiOS with the attribute associativity HELiOS-T_Sachnummer (=article number)- Custom1.

Example setting
