'Civil Engineering functions' docking window > Timber construction
In the Civil Engineering functions docking window at Timber construction you will find various timber joints for carpentering projects, e.g. front joints, heel joints or scarf joints. These are used in traditional timber construction involving the joining of wooden beams with larger diameters (> 8x8 cm) - in particular for roof constructions.
|
Front joint and front+heel joint
|
Straight and oblique scarf (Scarf joint)
|
|

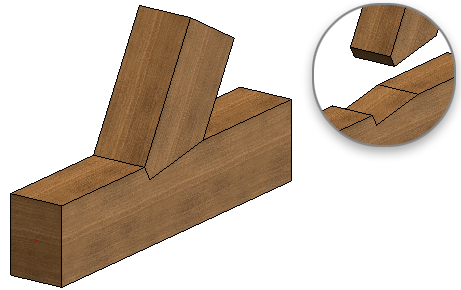

Front + heel joint |

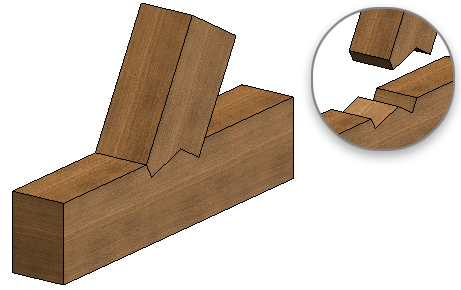

Bisecting front joint |
|
|
|
|
|
|
|

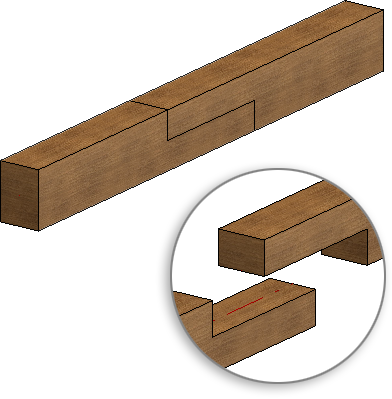

Straight scarf |

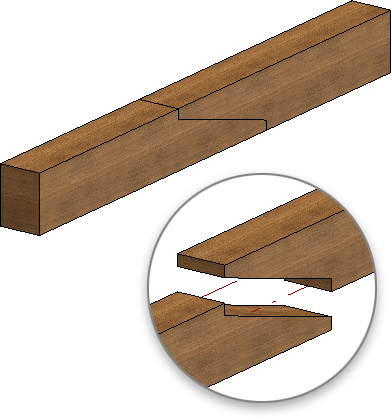

Oblique scarf (Scarf joint) |
|
|
|
Connections + Variants (3-D SE) • Change Connection (3-D SE)
