3dfindit / CADENAS
Drawing > Insert Part > Exp.
> 3Dfind

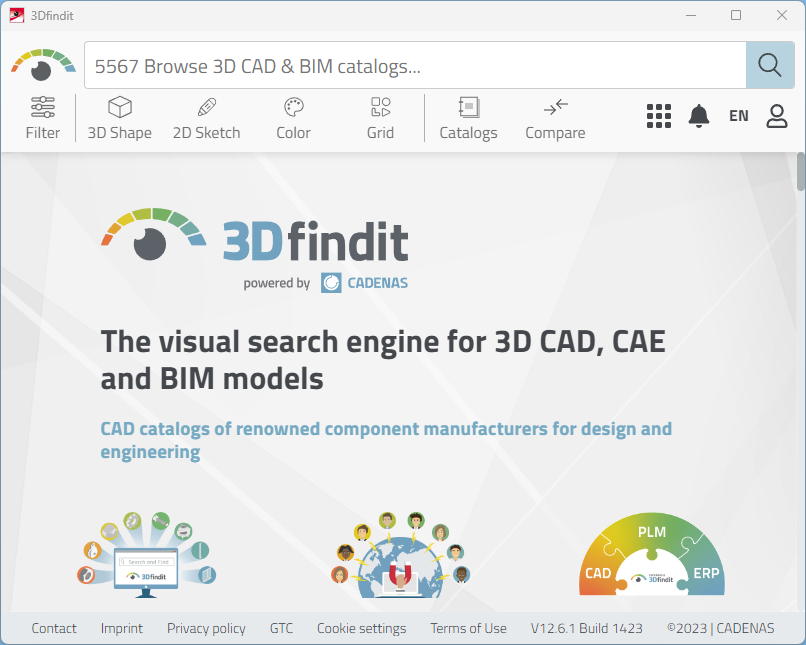

3Dfindit by CADENAS is the visual search engine for 3D CAD, CAE and BIM models. It enables access to CAD catalogues of well-known component manufacturers for drawing and engineering.

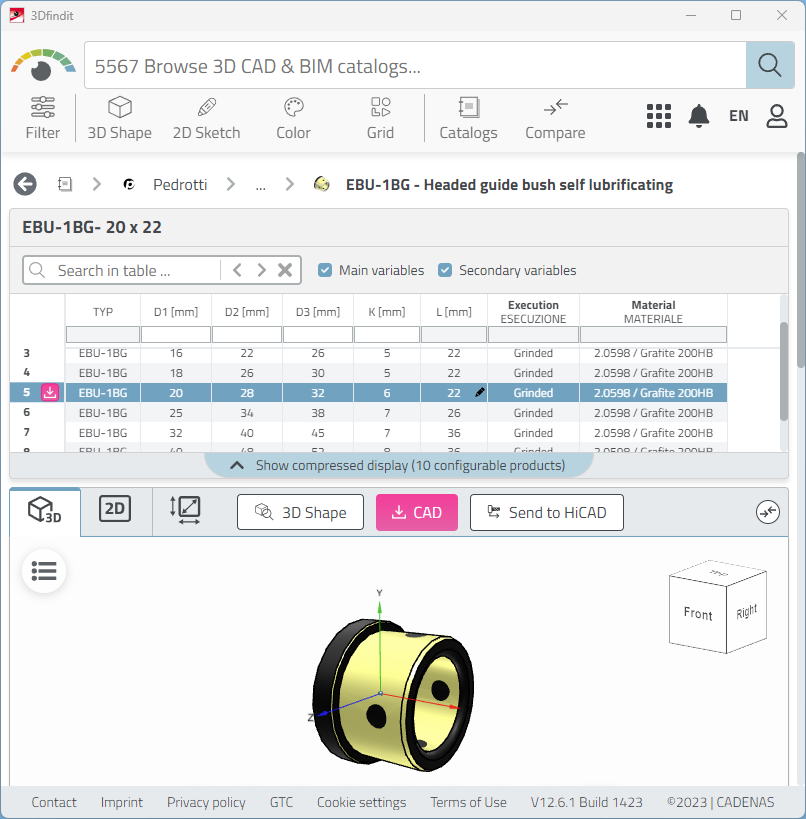

For direct access to the search engine, the function 3DFindit is available in HiCAD via Drawing > Insert Part > Exp. > .... There are two versions, which are displayed in the title bar of the function. This makes it clear which version of the two is used:
- 3Dfindit, basic version
This free version gives you access to the available 3D catalogues that have a download contract with CADENAS (as of 06/2023 there are about 900 manufacturers).
- 3Dfindit, full version
The paid version gives you access to the DIN/ISO/EN standards and to the available 3D catalogues which have a download contract with CADENAS (as of 06/2023 there are approx. 900 manufacturers).
A prerequisite for working with 3Dfindit is a functioning internet connection. Registration is required for access.
