QOMET BOM

Drawing > Save/Print > Save as... > Further...

QOMET is an ERP system specialised in steel and metal engineering.

The functions for the output of QOMET-specific BOMS can be found at Drawing > Save/Print > Save as... > Further > ... as follows:

Qomet BOM, Entire drawing

Qomet BOM, Only active part

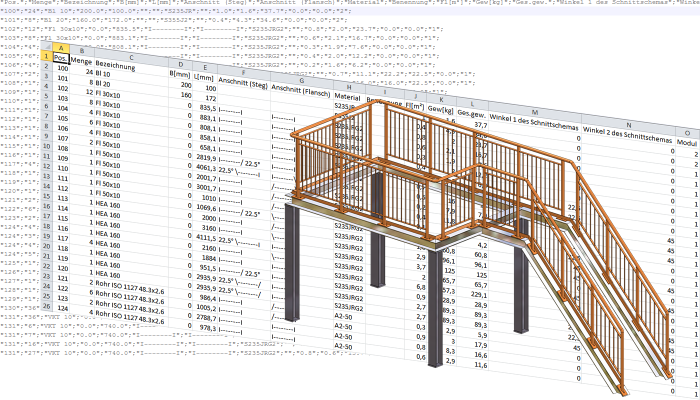

The BOMs contain particular columns of the Steel Engineering Excel BOM (hicad_Stahlbau.xlsc ) that are relevant for the QOMET system in particular. The file is exported in the CSV format.

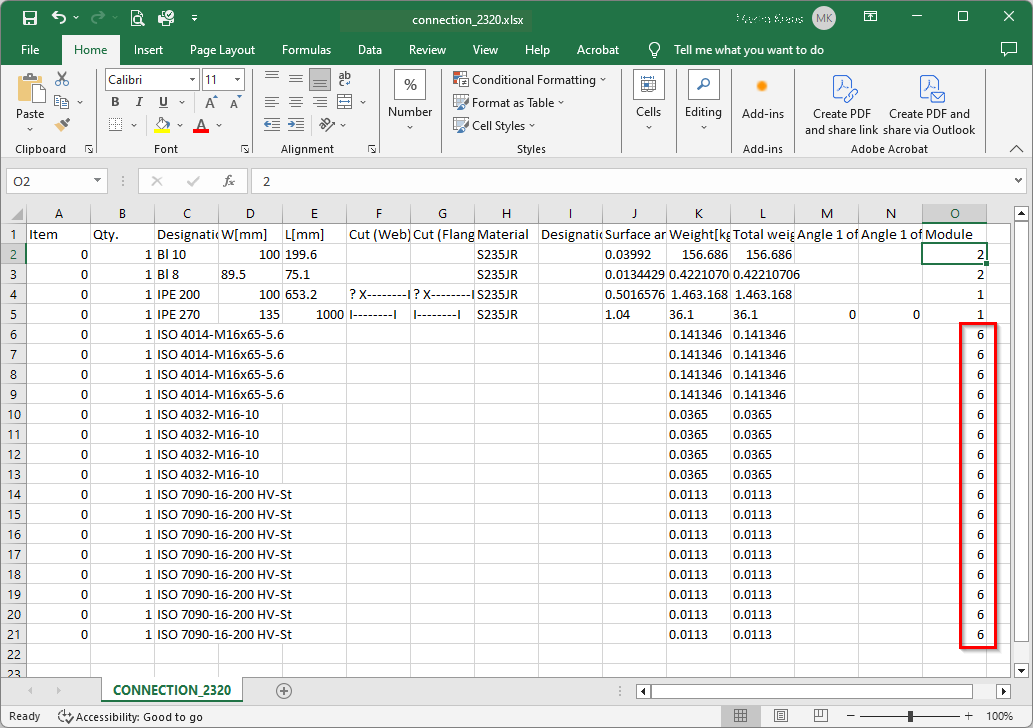

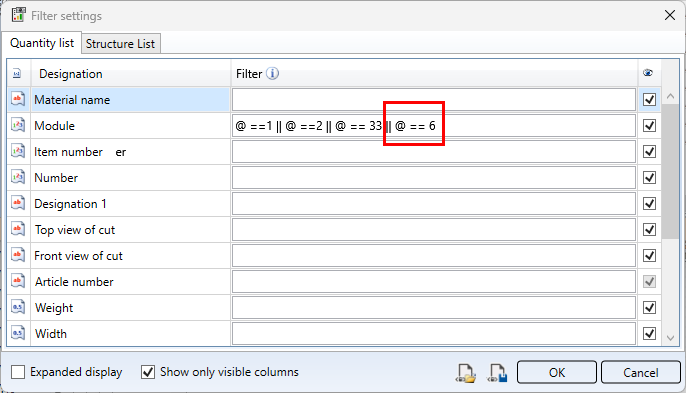

The settings for Qomet-BOMsn can be adjusted in the file QometExport.rm_settings in the sys directory of the HiCAD installation. For example, to include bolted connections, the filter of the module column in the Report Manager can be adjusted accordingly, for example:
