Element Numbering

Civil Engineering functions > Layout planning > Annotation > Element numbering

With this function, the installation elements of an element installation can be annotated automatically, e.g. for overview drawings.



Numbering by levels

If this checkbox is activated, the numbering will be done per "level", always from the first element at the bottom left to the last element. The Y-axis determines the level direction. If the checkbox is deactivated, numbering will be done consecutively.



Automatic

With automatic numbering, the XY-plane of the active coordinate system determines the numbering sequence (first in X-direction, then in Y-direction).



Manual

Here you simply select the elements to be numbered with a mouse click.



The content of the numbering is controlled by the following annotation templates:

• EINumbering_PerLevel.ftd (for numbering by levels)
  {Level of element installation numbering (part attribute)}-{Running number of element installation numbering (part attribute)}
• EINumbering_Consecutive.ftd (for consecutive numbering)
  {Consecutive number of element installation numbering (part attribute)}

As with the other HiCAD annotation templates, the files can be individually configured if required, e.g. with the HiCAD Annotation Editor. The files are located in the HiCAD sys directory.



Example:

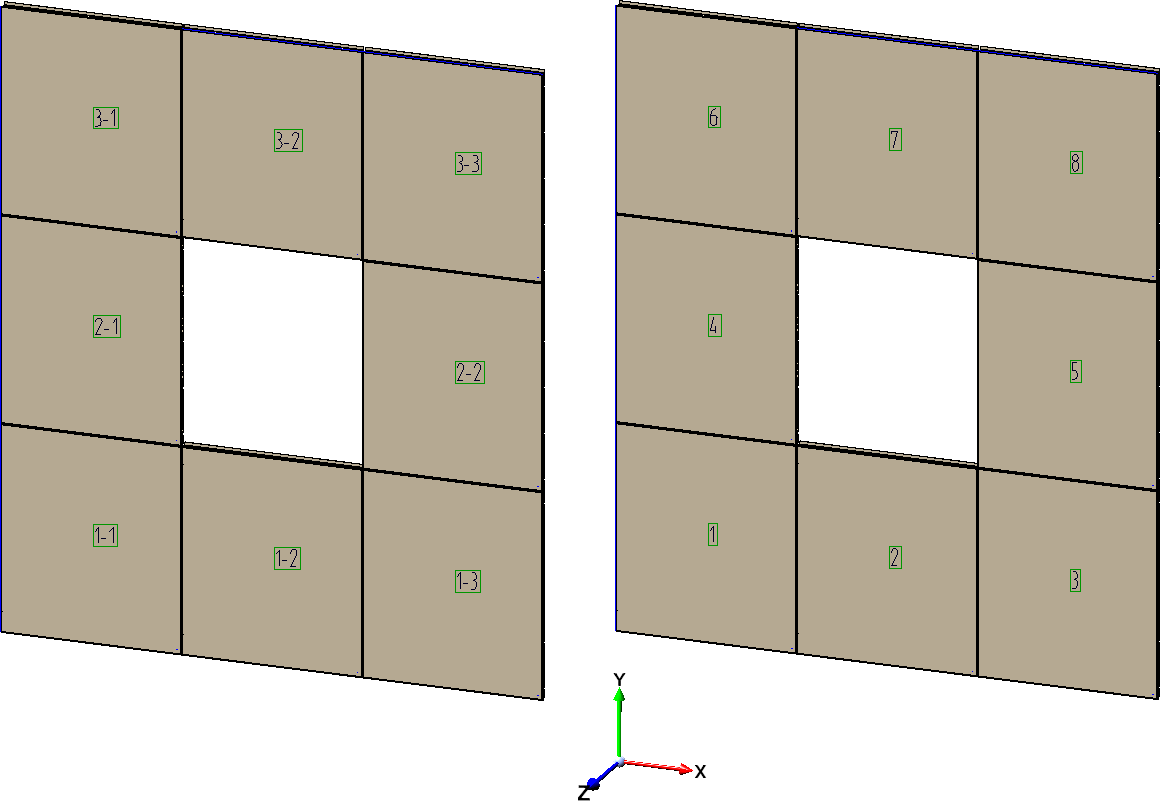

Left: Numbering by levels, Right: Consecutive numbering.



It will not be checked whether the numbered elements are identical.
