Creating/Editing of Configuration Templates

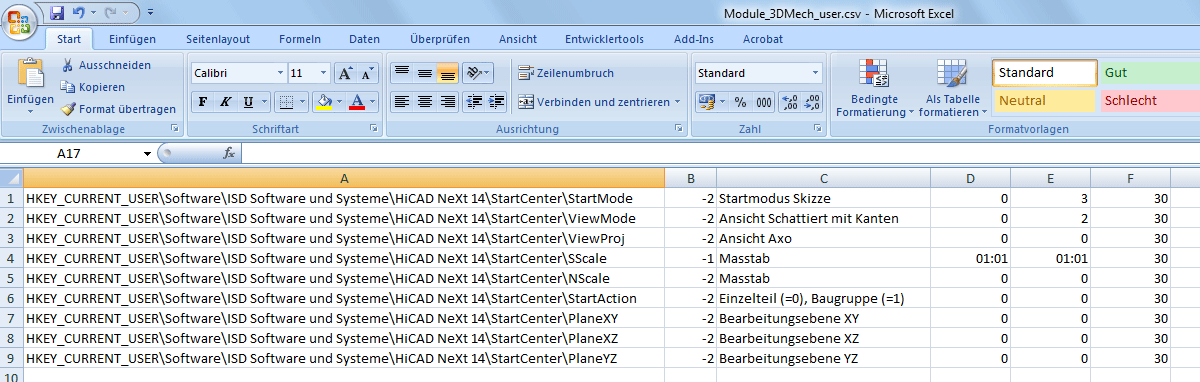

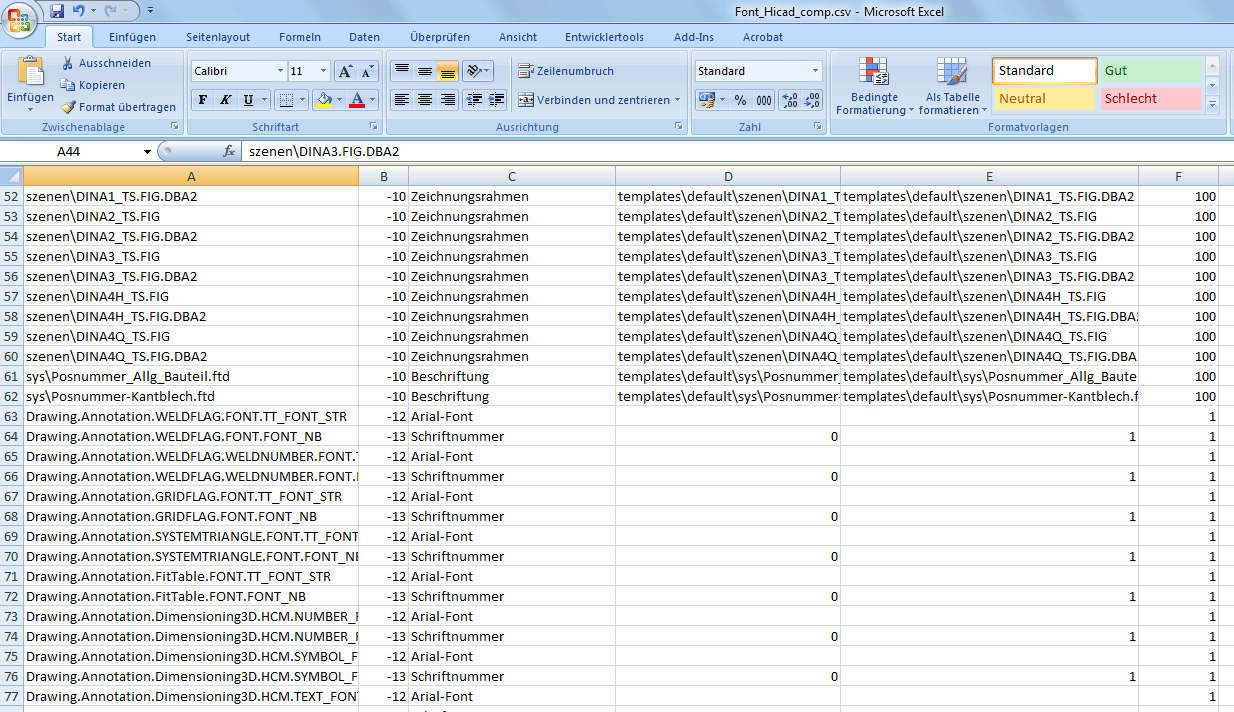

Configuration templates are CSV files that you create/edit with Microsoft Excel. To create a new template, start Excel and create a new table. Each row of the table represents

The change of an entry in a DAT file,
The change of a variable via Configuration Manager (as of Version 1700),
The use of a user-defined FGA-, XML- , RMS-, FTD file, or
The change or filling in of a Registry entry.

The following columns will be used:

Column

Content

Name of the file to be changed, including the name of the HiCAD subdirectories, e.g.

Resources\masks\example.XML

If you want to fill in a Registry entry, the complete Registry path, starting with the root directory, needs to be specified, e.g.

HKEY_LOCAL_MACHINE\SOFTWARE\ISD Software und Systeme\HiCAD\3\NewPmu

If you want to change the variable of a configuration that was created via the Configuration Editor, you need to specify the name of the variable with the complete path (key names!).

DRAWING\ANNOTATIONS\SYSTEMTRIANGLE\TEXTPOS_DY

This column contains a code that determines the handling of the file in the column:

>0	If the file specified in column A is a DAT file, the number of the line of the DAT file to be changed needs to be entered here. (TIP: In the Windows Editor the line number is shown if the line break option is deactivated!)
-10	Select this code if you want to use your own FGA, RMS or XML file.
-12	Changing of a text variable of a configuration created via Configuration Editor
-13	Changing of a number variable of a configuration created via Configuration Editor
-14	Array of Integer values for the Configuration Editor. Each single value is separated from the previous value by a whitespace.
-15	Array of String values for the Configuration Editor. Each single string must begin and with an exclamation mark and is separated by the previous string by a whitespace. Example: SYSTEM.Referencing.PART_ATTRIB_REF3D;-15; Comment;"Default1" "Default2" ;"Set1" "Set2" "Set3";3
-1	Filling in of a Registry entry of the type String
-2	Filling in of a Registry entry of the type Dword

Here you can enter an arbitrary text describing the corresponding setting.

If you have entered a DAT file, a Registry entry or the name of a configuration variable in column A, enter in column D the standard value (default) of the setting/variable.

For other files, the name of the original file needs to be entered here, including the name and the HiCAD subdirectory path. The original ISD files are located in the HiCAD subdirectory TEMPLATES\DEFAULT\SYS.

If you have entered a DAT file, a Registry entry or the name of a configuration variable in column A, enter in column E the changed value, i.e. the value that you want to use as the new pre-setting.

For other files, enter the name of the file to replace the current original file here. The content of this file will then be copied to the file from column A.

This column is not evaluated and can therefore be left empty.

The configuration file must be saved as CSV file.
