Process Form/Positional Tolerances

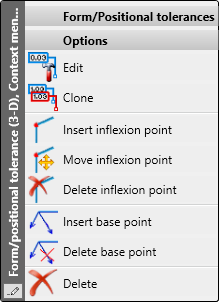

The processing functions for form and positional tolerances can be found in the context menu after right-clicking on an existing form and positional tolerance. The functions available there are essentially the same as those for annotations.

This allows you to insert, move and delete base or inflexion points, as well as delete tolerances.

The Clone function allows you to transfer the current tolerance to other parts. To do this, select the desired component and then the reference point.

The Properties function allows you to process the tolerance. For this purpose, the dialogue window Form/Positional tolerances is displayed. Here you can change symbols, tolerance value or letters of the tolerance.

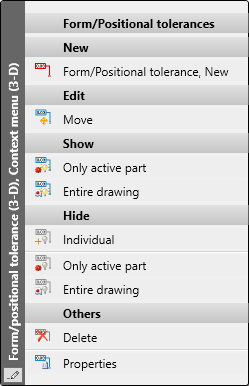

For tolerances created with a version prior to HiCAD 2023 SP2, the earlier dialogue for form/positional tolerances will be displayed.
