Transform Referenced Part
Move
2-D Part > Reference > External
> Move

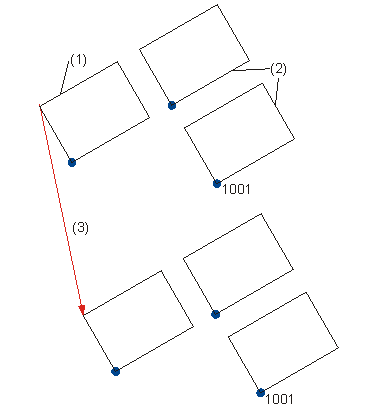

You can move the active part and its identical parts by specifying a displacement vector.
(1) Active part
(2) Identical parts
(3) Displacement vector
Rotate about fitting point
2-D Part > Reference > External > Rotate about fitting point

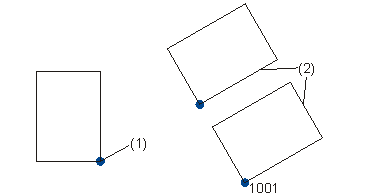

Once you have entered the angle of rotation, only the active part is rotated about the fitting point.
(1) Fitting point of the active part
(2) Identical parts
Scale about fitting point
2-D Part > Reference > External > Scale about fitting point

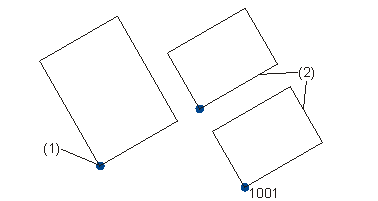

Entering the stretching factor only scales the active part. The current part is stretched from the fitting point.
(1) Fitting point of the active part
(2) Identical parts
