Parameter Values
Extras > Parameter values
Parameter values are the selection criteria which are displayed for the insertion of standard parts in HiCAD.
The Catalogue Editor displays the current parameter values of a catalogue by a record table column headline in bold letters. Use the Parameter values function to display a window with the valid parameters for the individual standard in order to modify the parameter values in the Catalogue Editor.
Select the required parameter values in the left column and transfer them
to the right with the arrow button
.
If you do not want to use some
of the parameters in the right column as parameter values any more, mark them
and remove them with the arrow button
. The sorting sequence
can be altered with the
and
buttons.

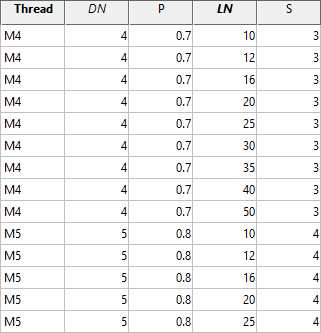

Parameter values are represented by bold column headers.
