The User Interface

Plant Engineering > Part Data Tools > Variant Editor

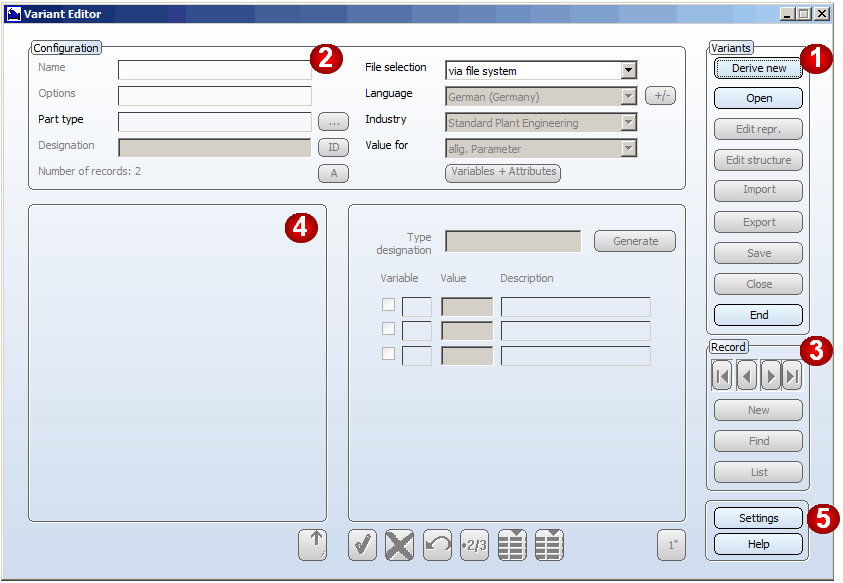

When you call the Variant Editor for Plant Engineering, the following dialogue window will be displayed:



The window areas:

1. Functions for variants
2. Configuration
3. Functions for data records
4. Edit variant
5. Settings
